E-bikes Cross-country e-bikes

2023

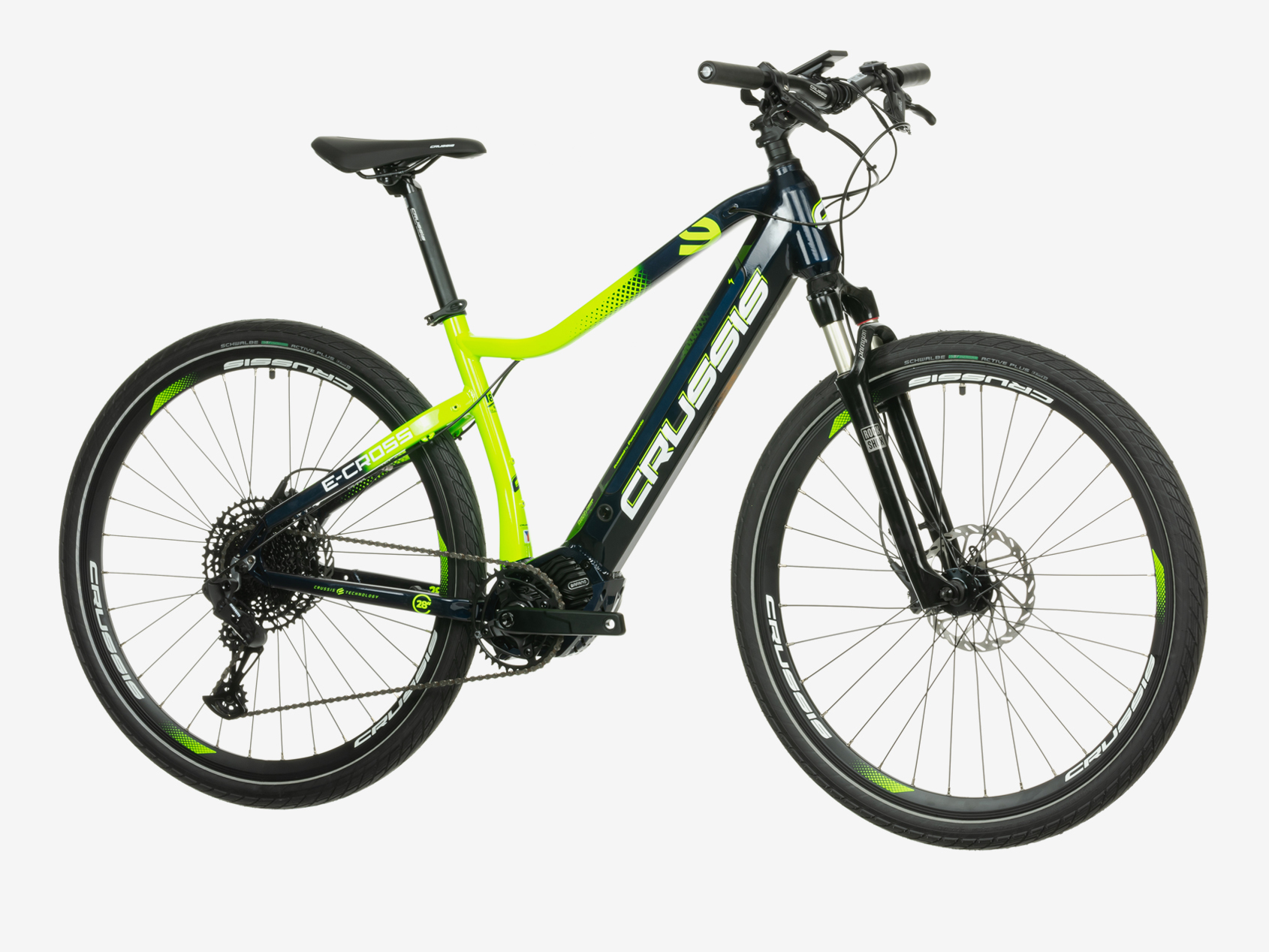

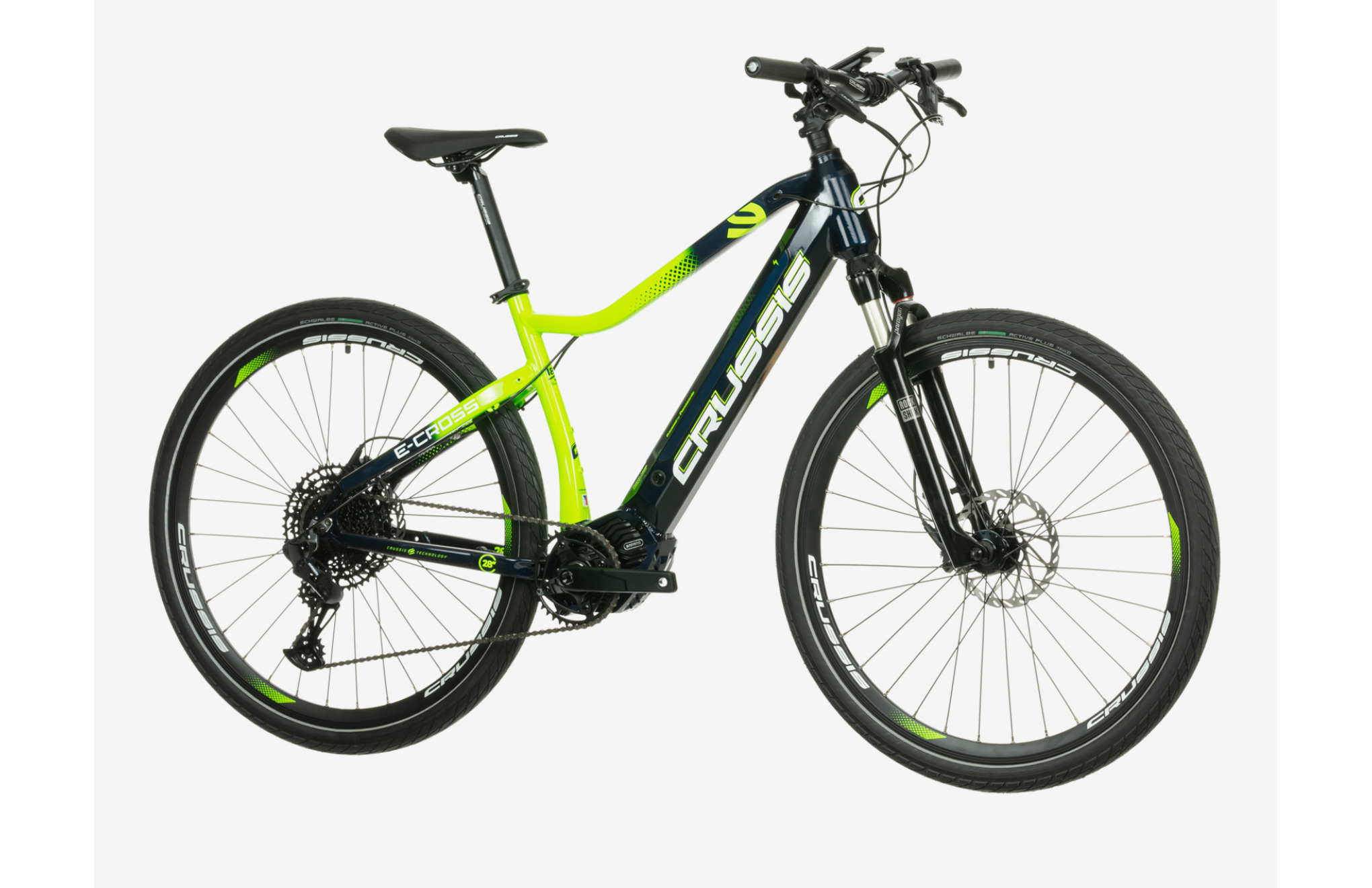

e-Cross 9.8-M

Name: e-Cross 9.8-M
Brand: Crussis
SKU: e-Cross 9.8-M (18)
Price: 2919 EUR

2.919 EUR

Model 2023

Height of the person

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21,5”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19,5”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17,5”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

Recommended frame size

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21,5”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19,5”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17,5”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

20” frame

18” frame

Sold out

This bike model is no longer available.

e-Cross 9.10-(720 Wh) 2.589 EUR Go to the new model

720 Wh (20 Ah)

Battery capacity

95 Nm

Engine performance

1 x 12

Number of gears

Are you looking for an e-bike full of cool features? Do you prefer comfortable riding and trips of all kinds? Not to be limited by profile or trip length? Then the e-Cross 9.8-M cross e-bike with middle electric motor and extra strong battery is for you.

e-Cross 9.8-M

2.919 EUR

Catalog 2025

Components

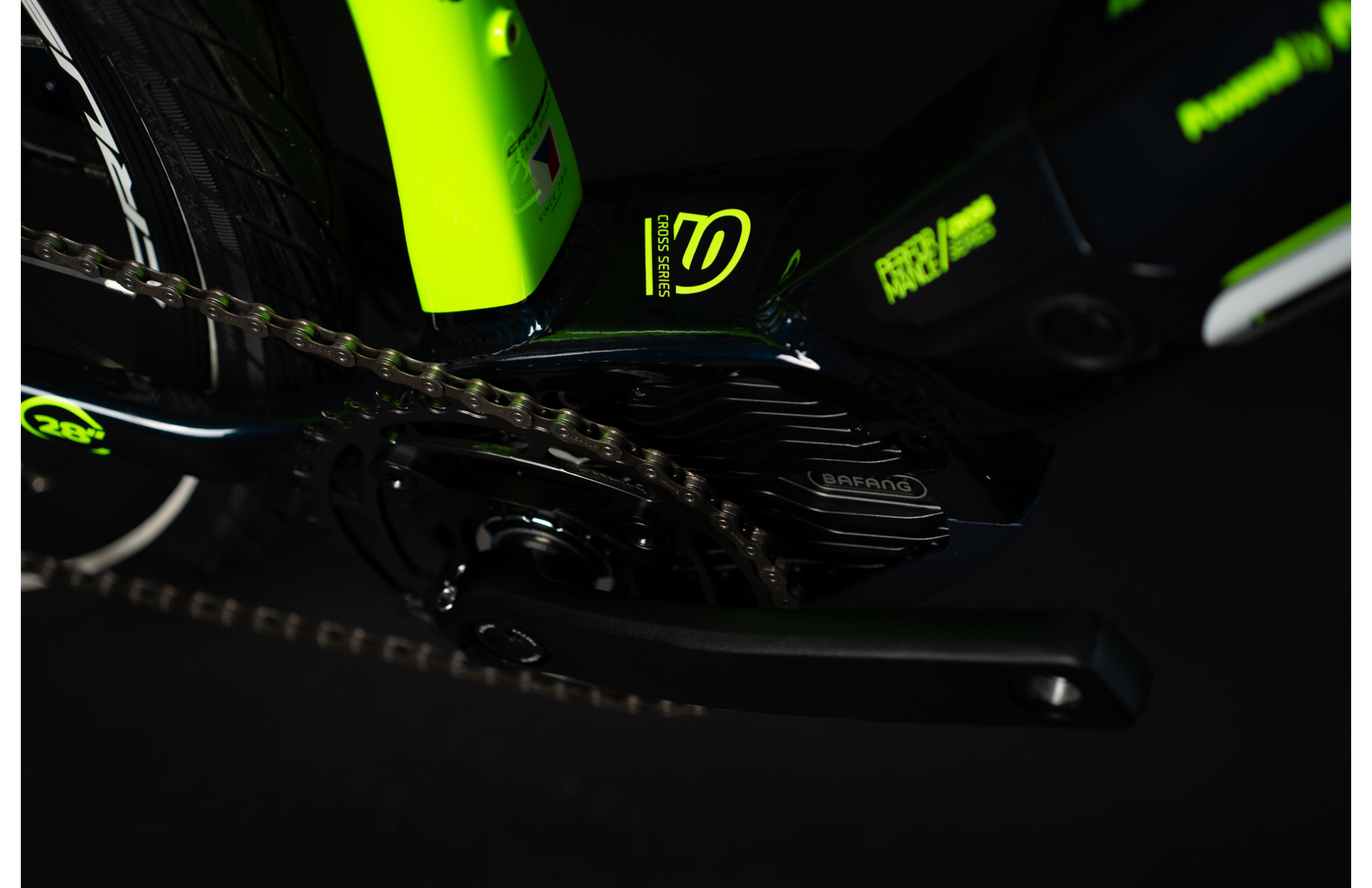

Motor

BAFANG M500 95 Nm

The BAFANG M500 is a super-powerful motor rated at 250W (max 500W) that perfectly balances torque and power consumption, which is always critical for an e-bike. For a dynamic ride, torque is essential, and it is really high, up to 95 Nm. The Bafang M500 motor is designed for e-bikes where sporty performance is expected even in the most extreme terrain. The motor is equipped with a torsion sensor. The electric motor is equipped with a torsion sensor. The motor power is regulated by a control unit that constantly evaluates how hard the rider is pedalling. The way it works is that the more power you exert while riding (pedaling), the more the motor helps you.

Baterie

SAMSUNG 720 Wh (20 Ah)

The heart of the e-bike's power supply system is a battery with Samsung 36V / 720 Wh (20 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

Display

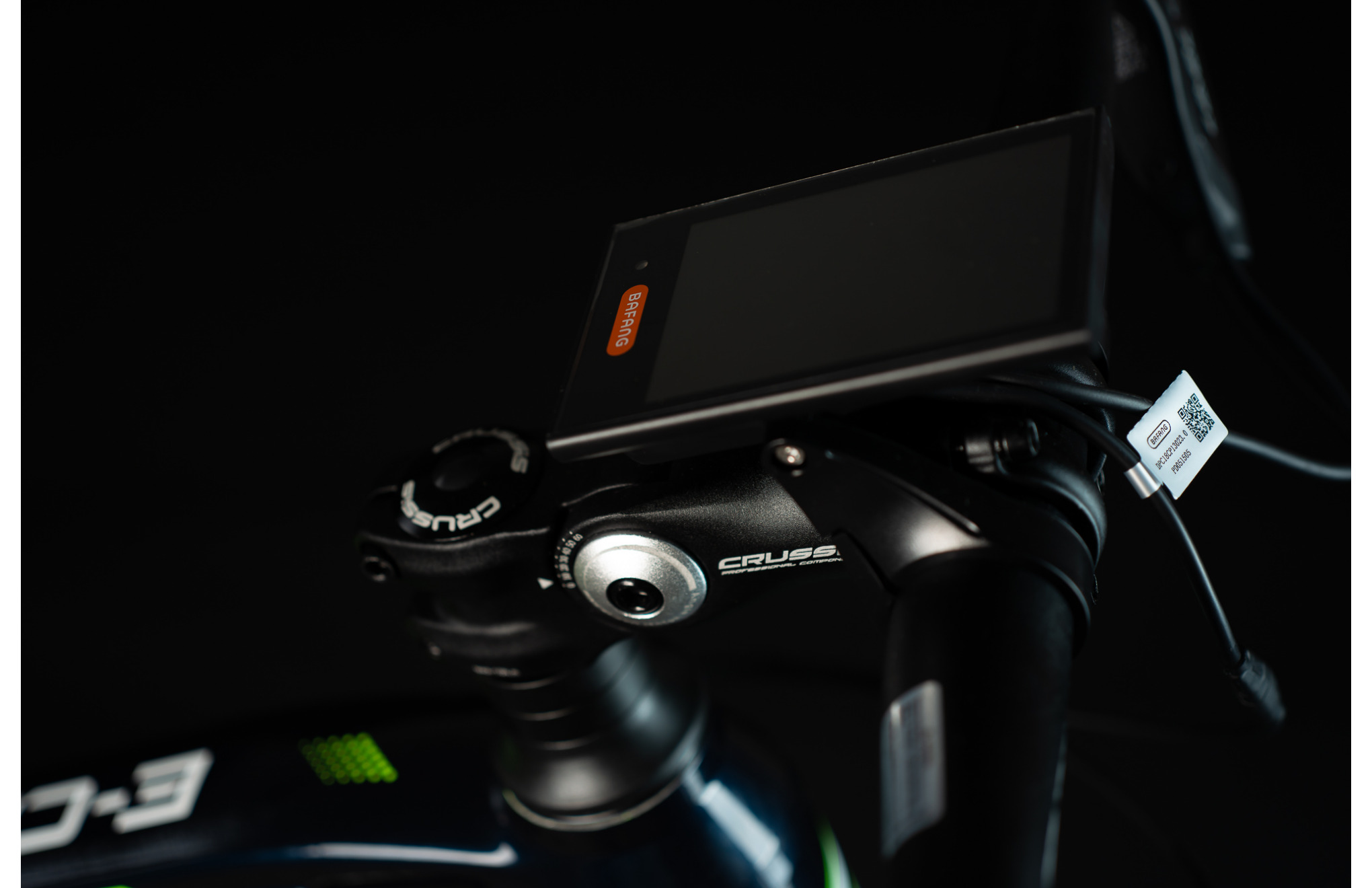

BAFANG LCD display - colour

The colour LCD display shows not only basic information on battery status and the level of assistance currently in use, but also other data relating to the journey (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore. The display is also equipped with a USB connector for charging mobile devices (phone, navigation, lighting, etc.). You can also charge your devices outside of civilization, which can come in handy especially during longer trips.

Gearing

SRAM SX Eagle, 12 speed

Eagle™ technology from SRAM delivers smoother, more precise shifting with exceptional reliability. Eagle™ technology is revolutionizing MTB by offering cyclists a single-speed drivetrain that's designed to be just right - lightweight, durable, intuitive handling and a range of gears for all-terrain riding. Eagle™. The SX Eagle™ with 12 speeds is here to make it easier than ever for more cyclists to access the benefits of the Eagle™ system.

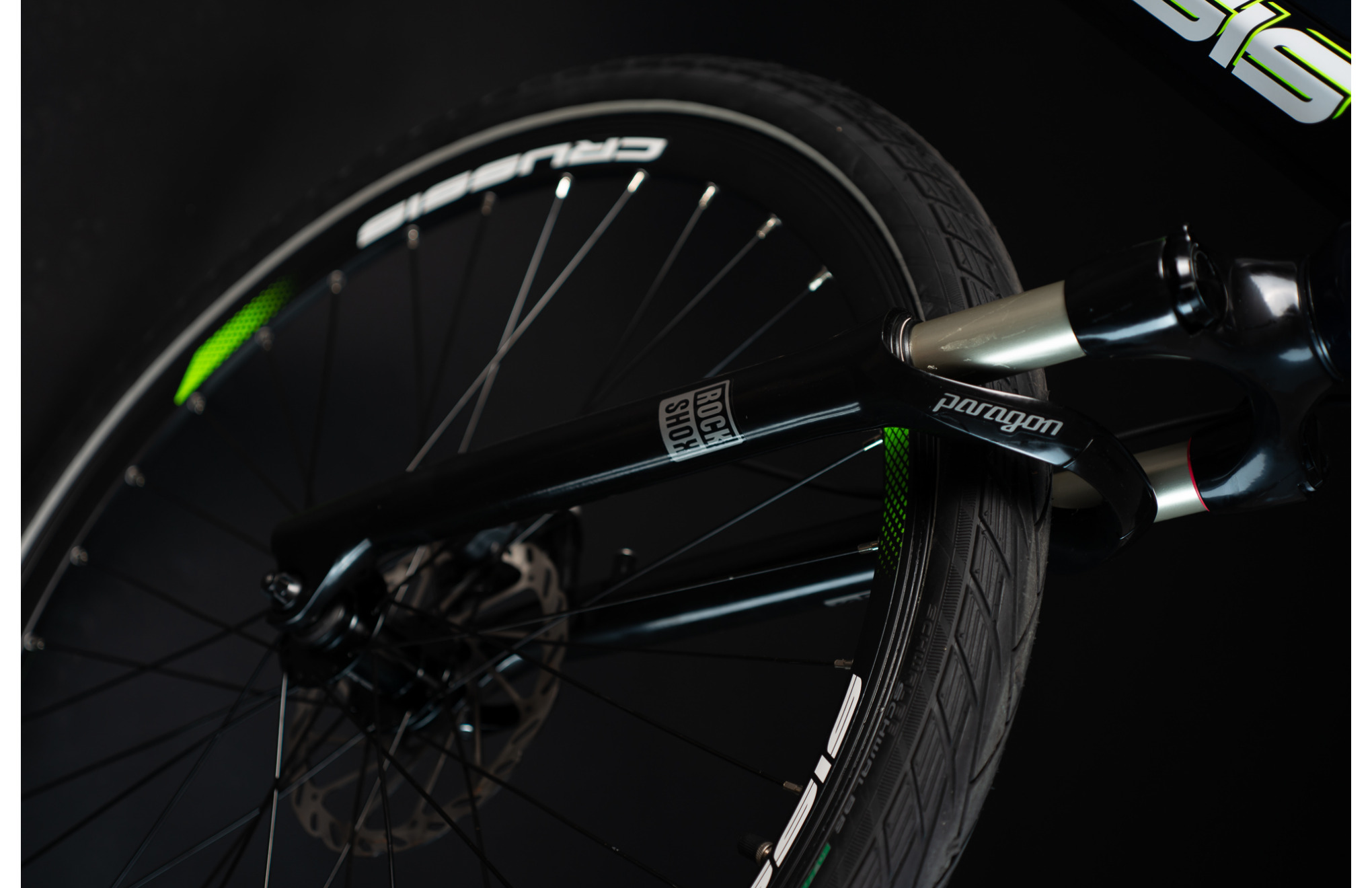

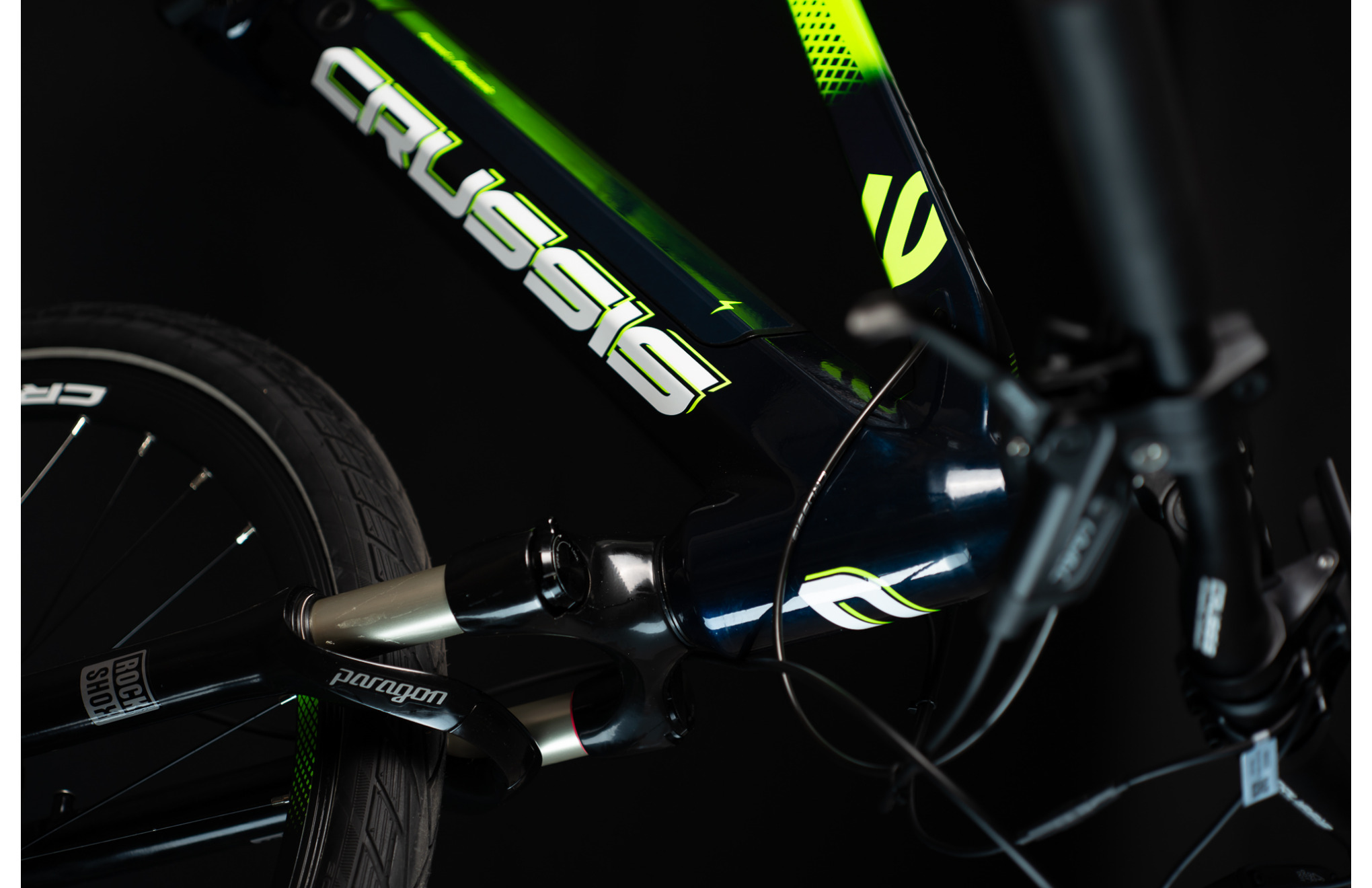

Suspension Fork

ROCKSHOX FS Paragon Gold RL Solo Air 700c

Treat yourself to a comfortable ride with the ROCKSHOX FS Paragon Gold RL Solo Air 700c air-damped fork. With 65 mm of travel and easy air pressure adjustment, the fork easily adapts to your weight and riding style. It accurately dampens off-road impacts and remains stable on a flat surface. For maximum control, you can simply lock the suspension directly from the fork crown. Enjoy a smooth and carefree ride on any terrain with this fork!

Technical specifications

Performance

Range

to 170 km

batteries

SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)

Motor

BAFANG M500, center, 250W (max 500W), 95 Nm

control

BAFANG LCD panel, 5 levels of assistance, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, alu with reflector

USB port

yes

Walking assistant

yes

Frame

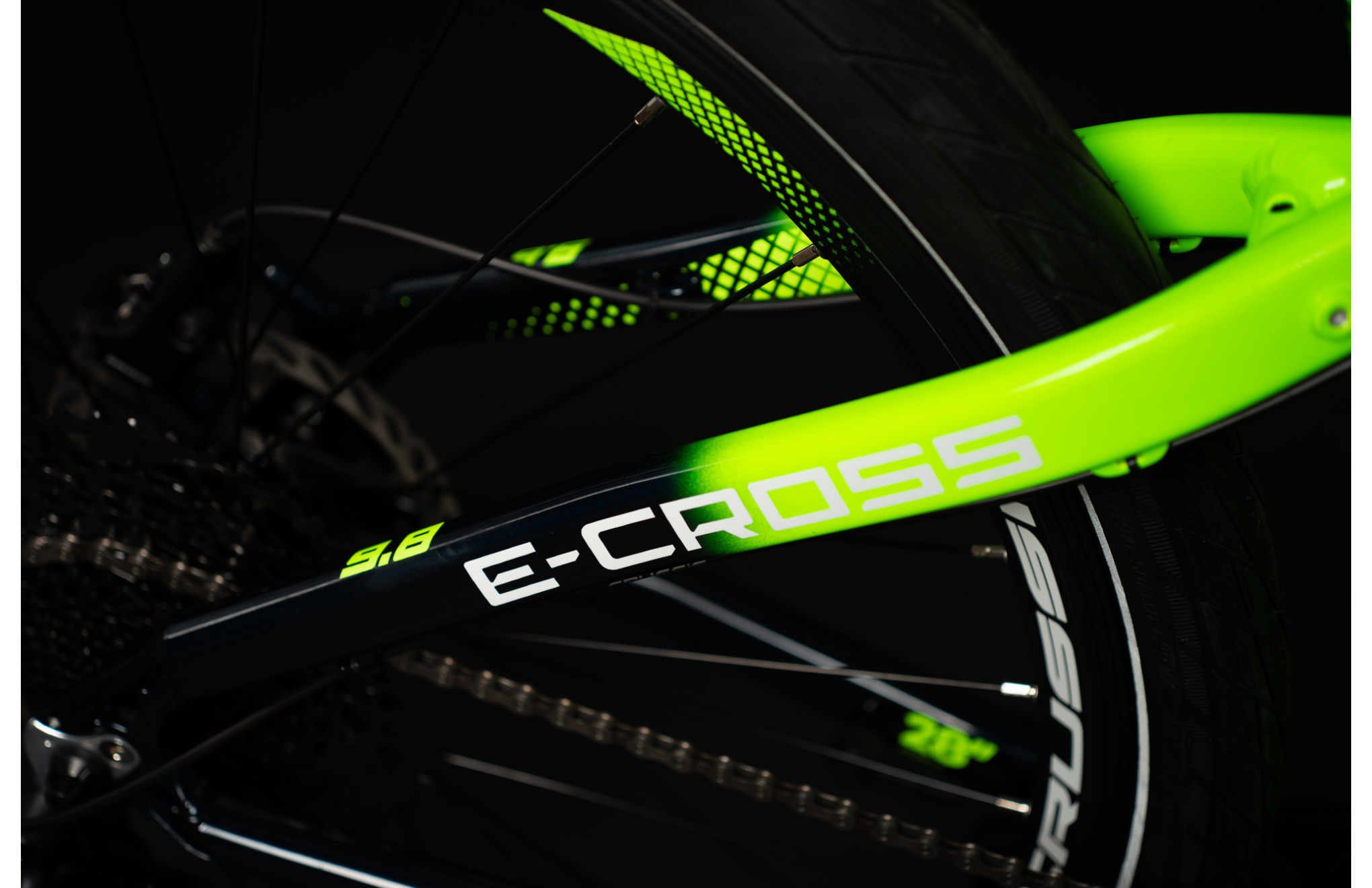

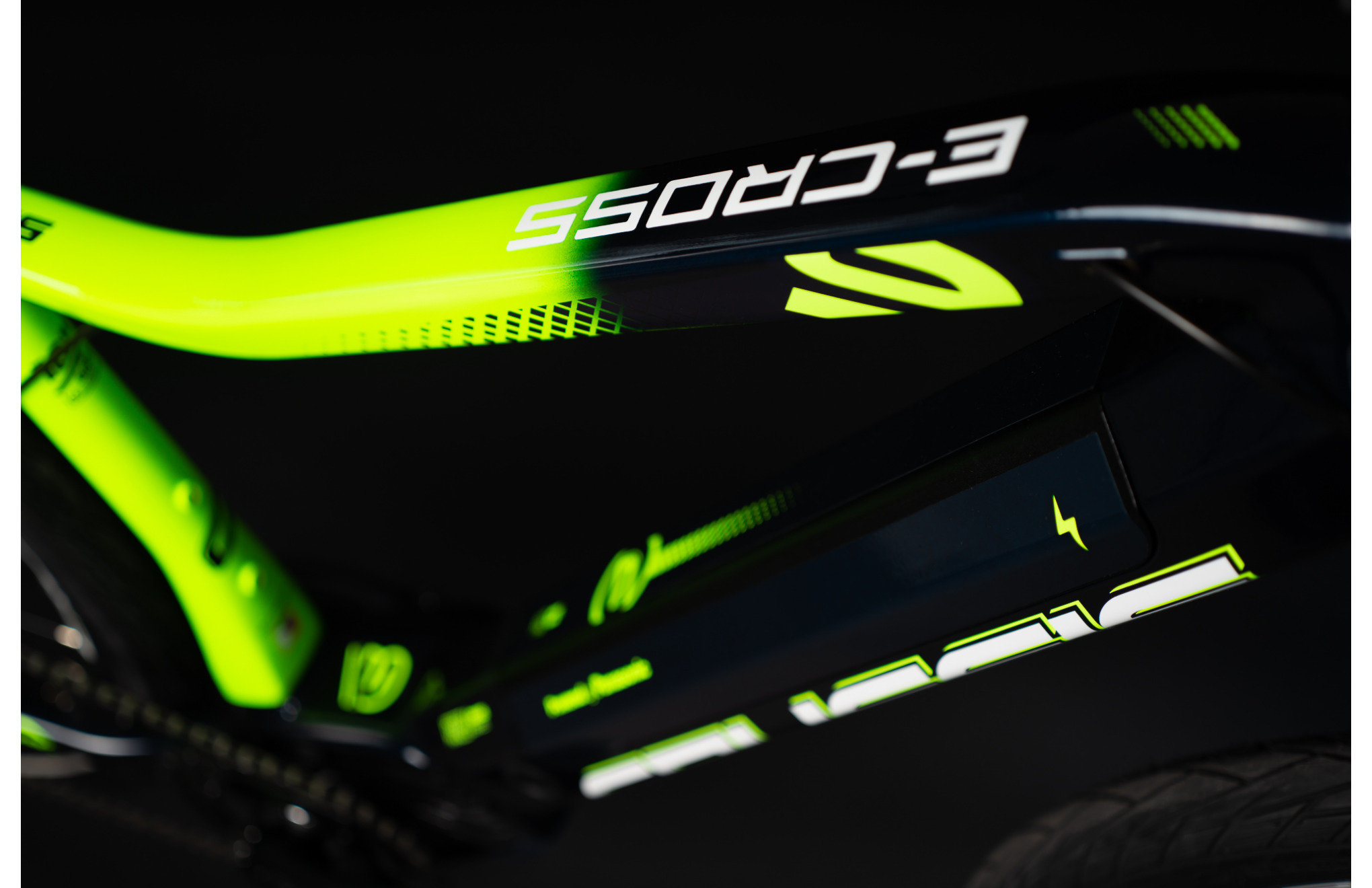

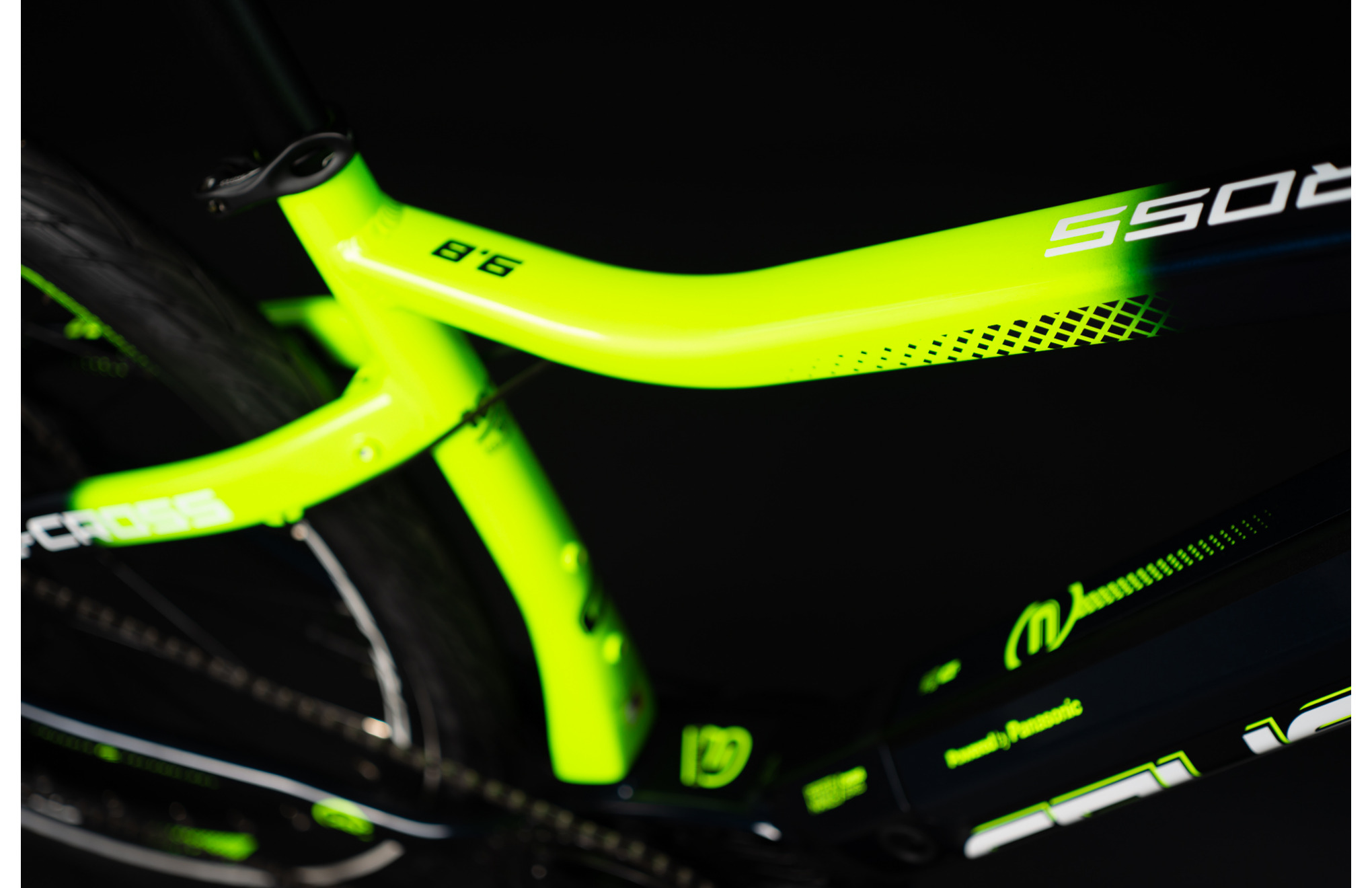

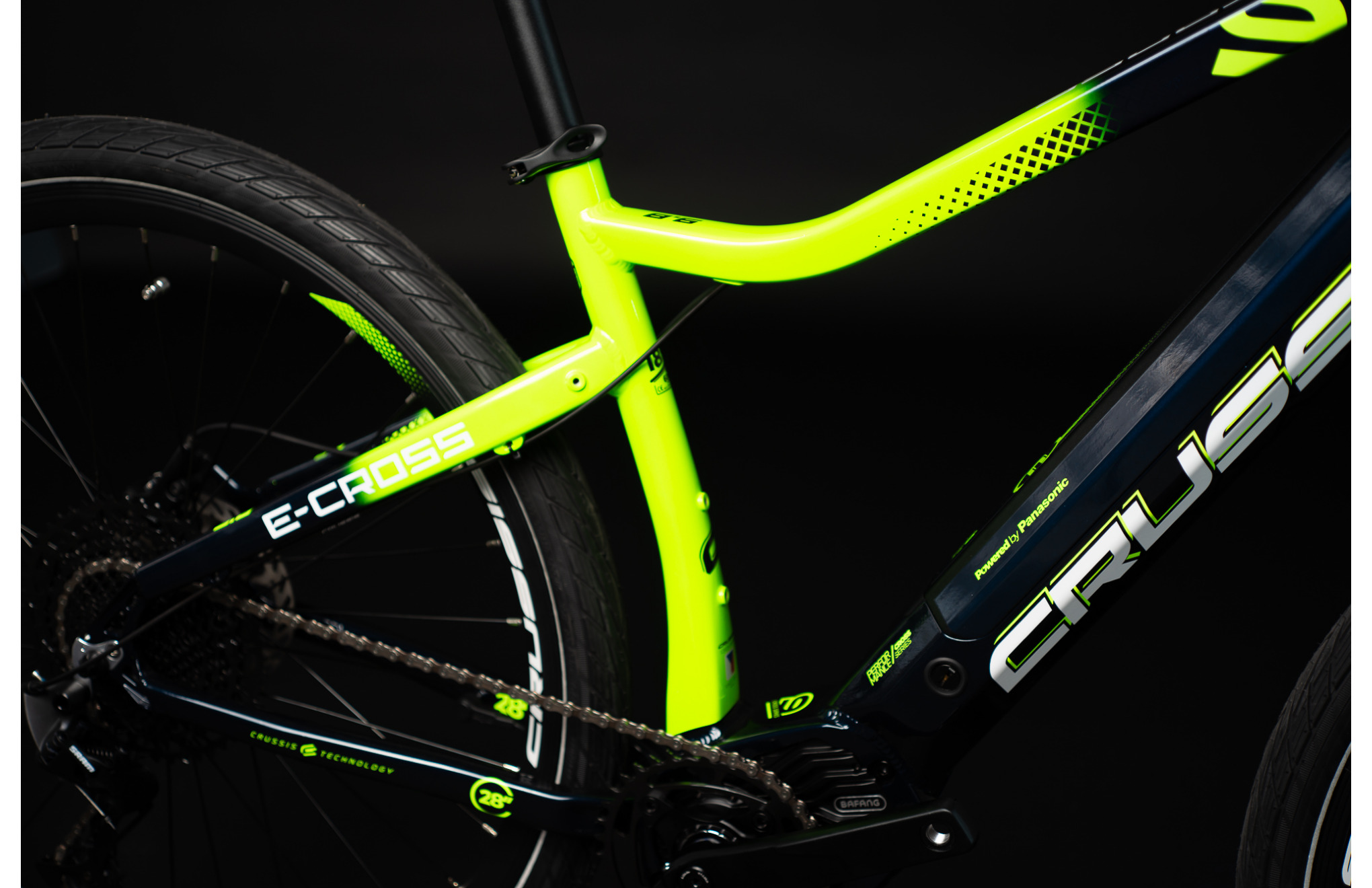

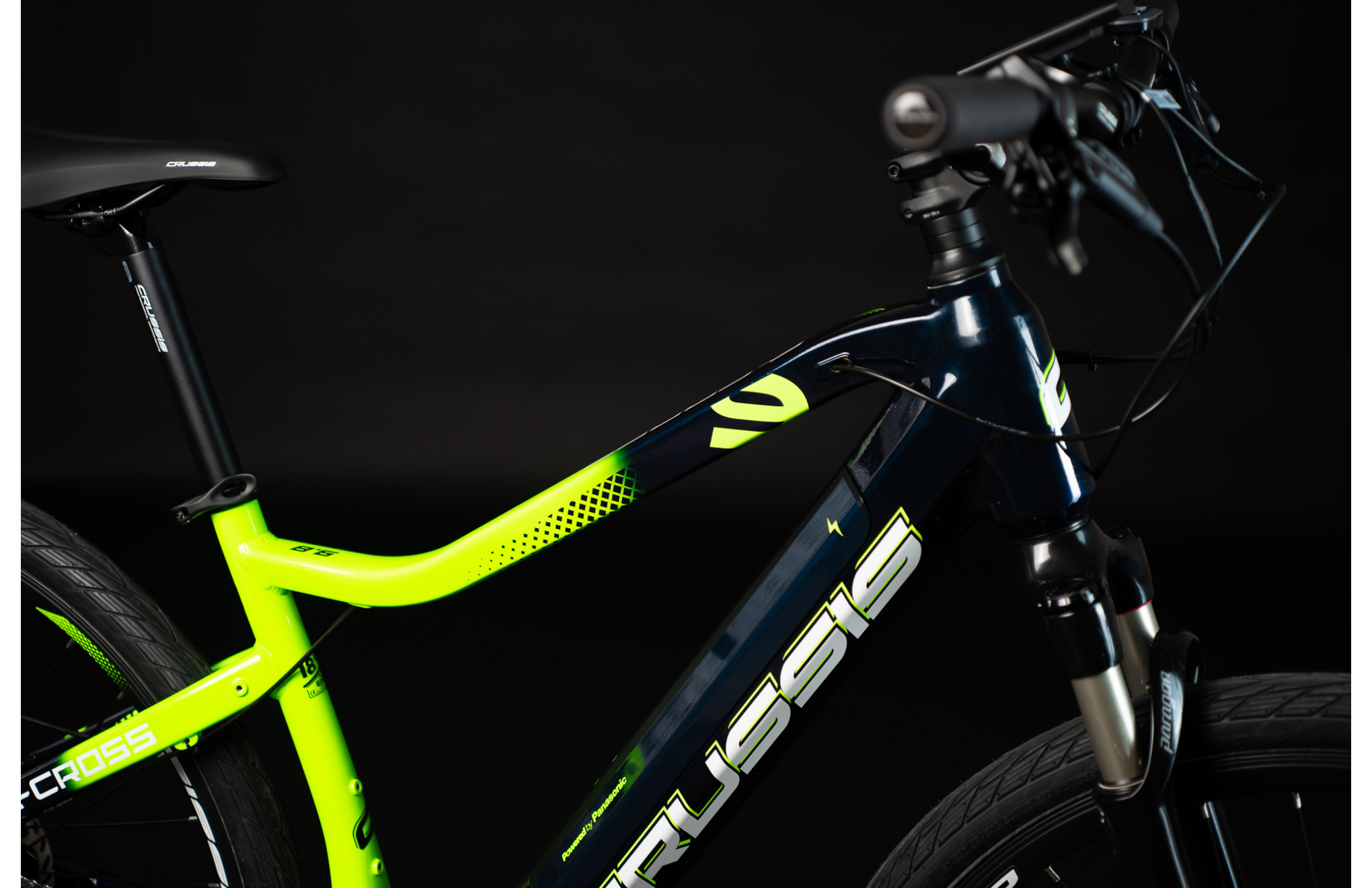

frame

Alu 6061- frame size 18"

Fork

ROCKSHOX FS Judy Silver TK R Solo Air 27,5", 100 mm travel, lockout on the fork

Wheels

Wheel diameter

28"

Rims

CRUSSIS 28", double walled, lined, 19mm

Hubs

CRUSSIS disc, wreath bearing, 32D

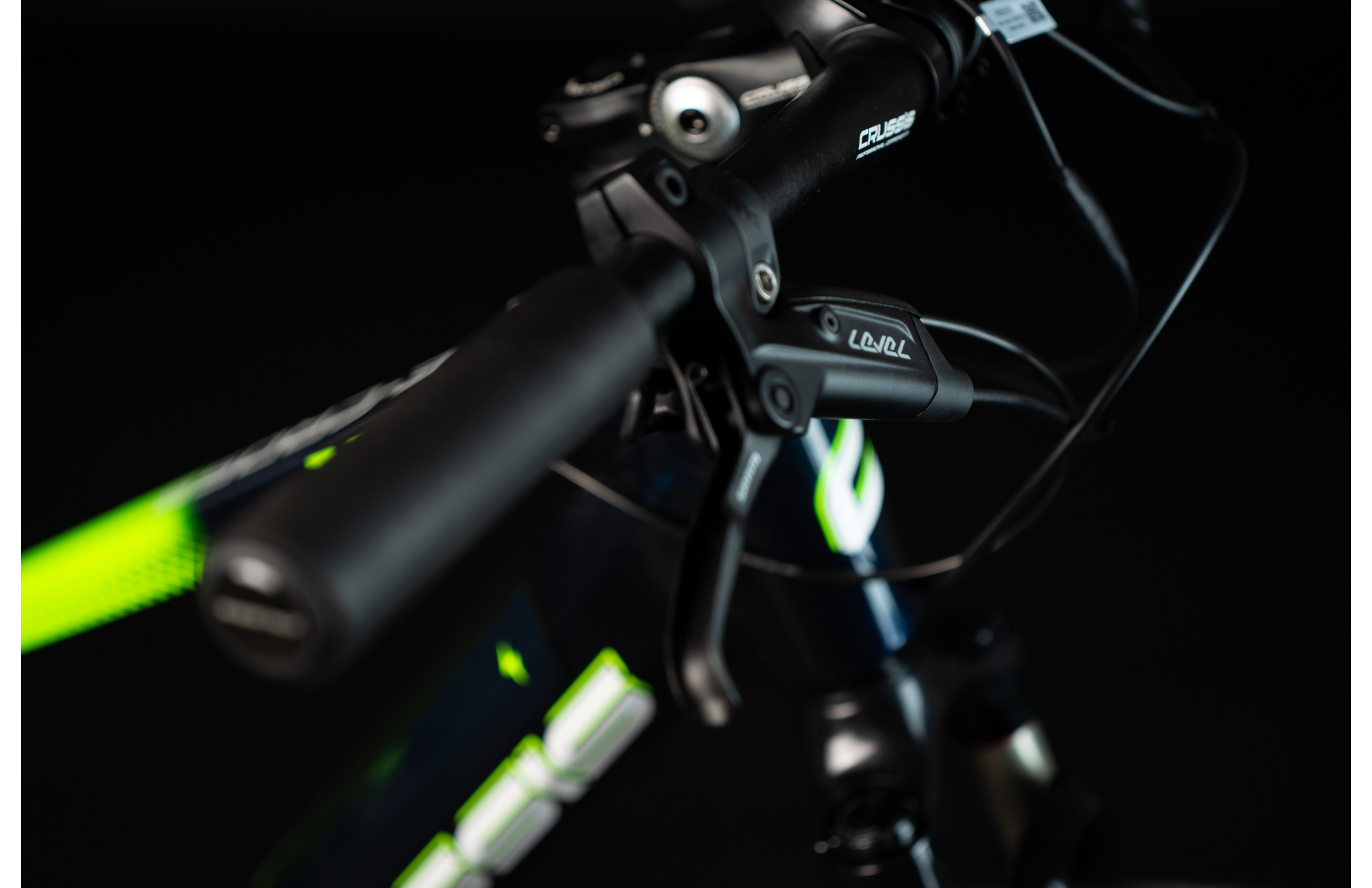

front brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor

tires

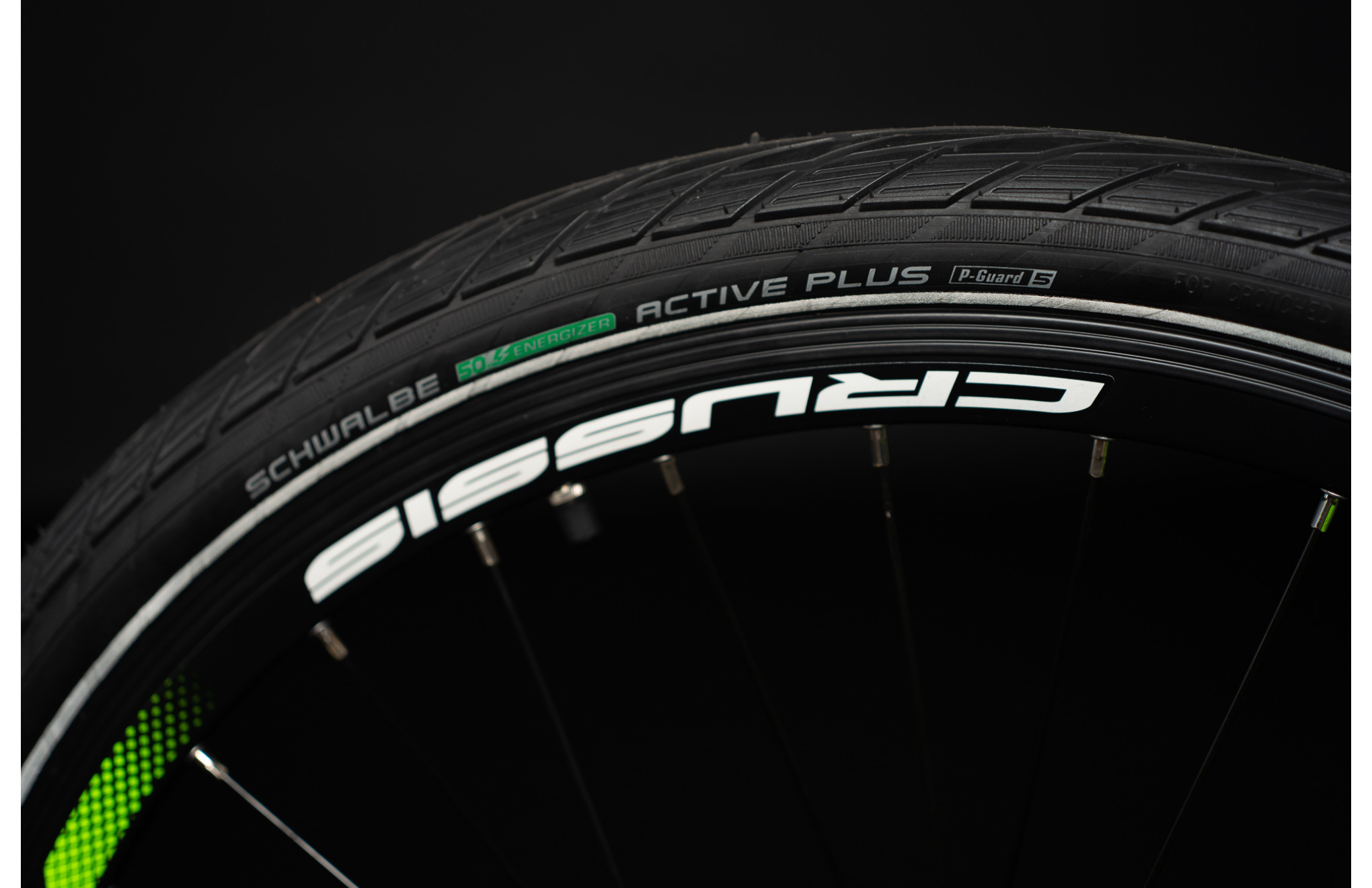

SCHWALBE Energizer Active Plus 28 x 2,00

Load capacity

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components

handlebars

CRUSSIS Al, 700 mm

stem

CRUSSIS Al, 105mm, adjustable

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

seat
