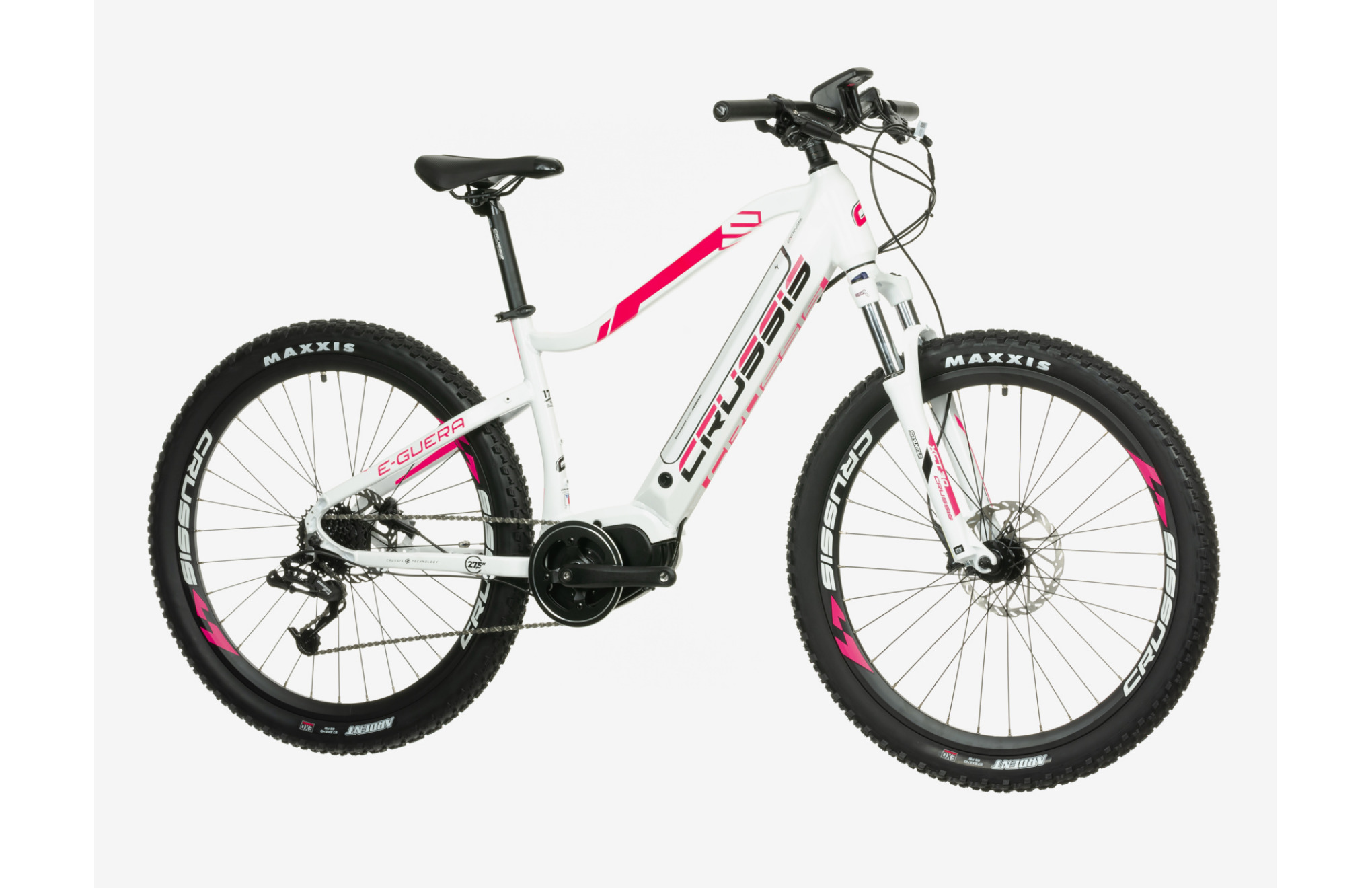

e-Guera 5.8

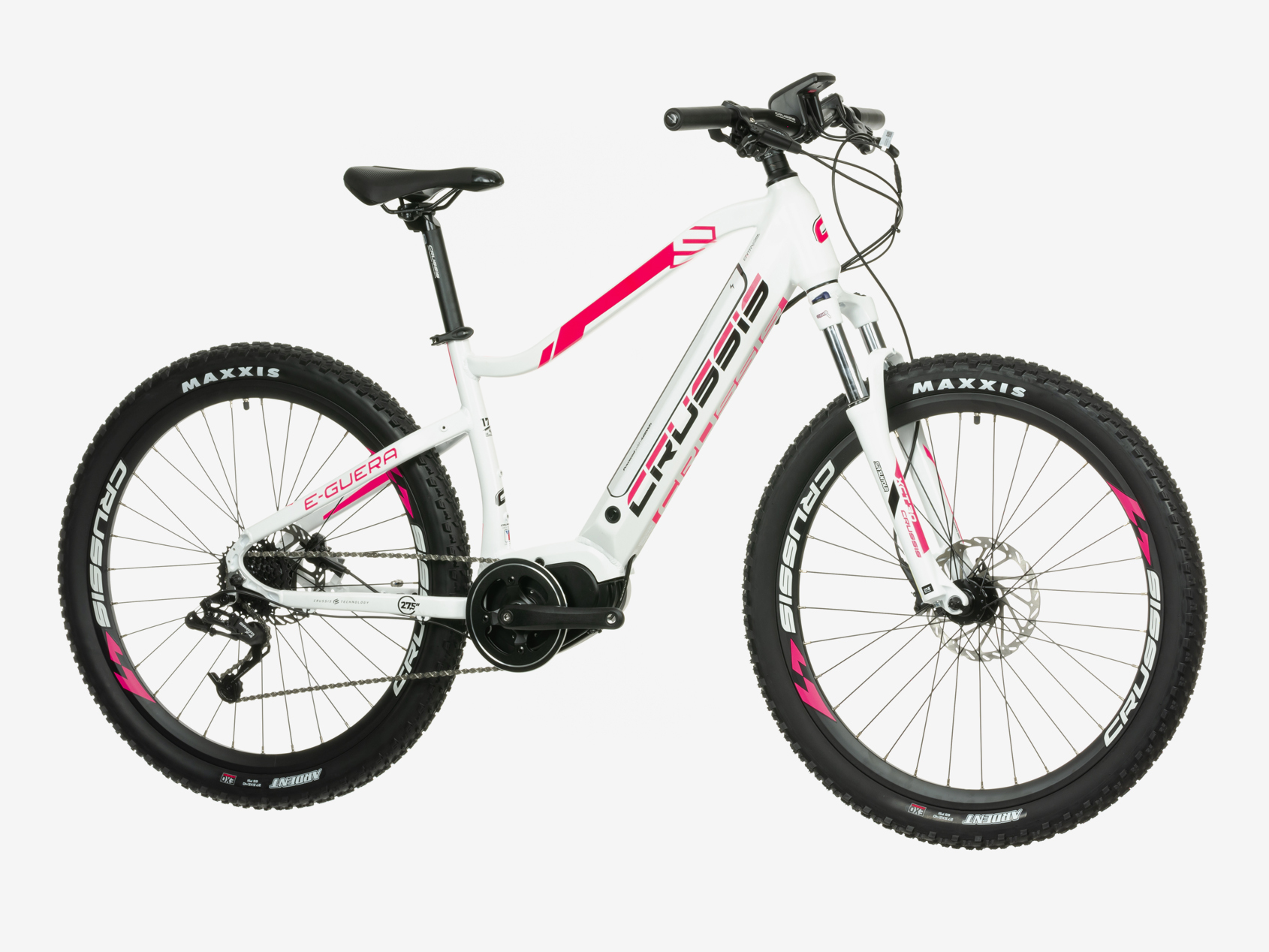

Name: e-Guera 5.8
Brand: Crussis
SKU: e-Guera 5.8 (17)
Price: 1899 EUR

1.899 EUR

Model 2023

Height of the person

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21,5”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19,5”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17,5”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

Recommended frame size

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21,5”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19,5”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17,5”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

19” frame

17” frame

Sold out

This bike model is no longer available.

e-Guera 7.10-(522 Wh) 1.999 EUR Go to the new model

468 Wh (13 Ah)

Battery capacity

80 Nm

Engine performance

1 x 8

Number of gears

We developed the Crussis e-Guera 5.8 e-bike just for you, for your trips through the countryside, on the flats, over hills and for touring in the mountains, in places you may not have explored with your bike before. If you are looking for a model with better accessories (fork, derailleur...), check out the e-Guera 7.8, e-Guera 8.8 or e-Guera 9.8, which also has a better Bafang M500 motor.

e-Guera 5.8

1.899 EUR

Catalog 2025

Components

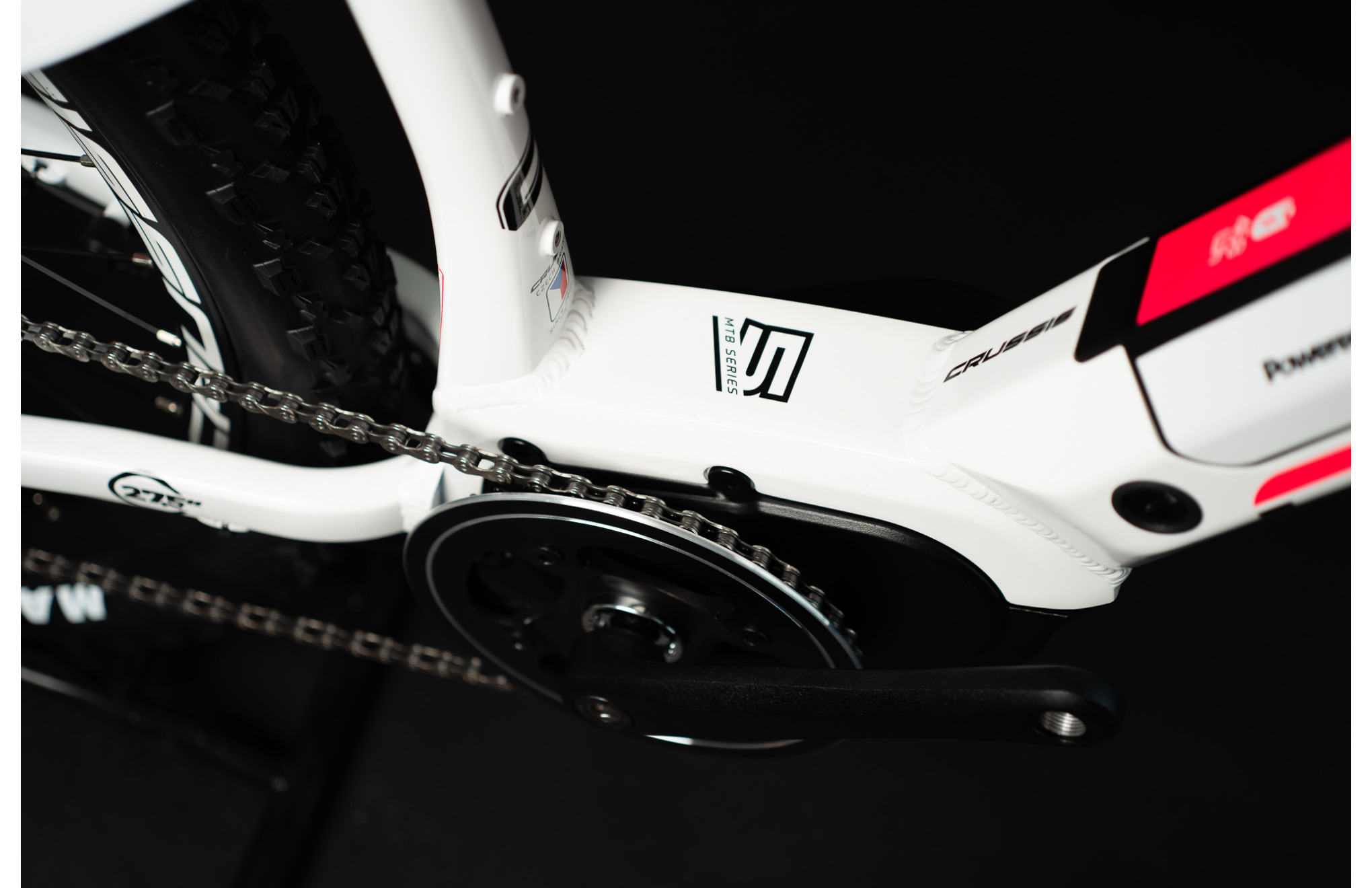

Motor

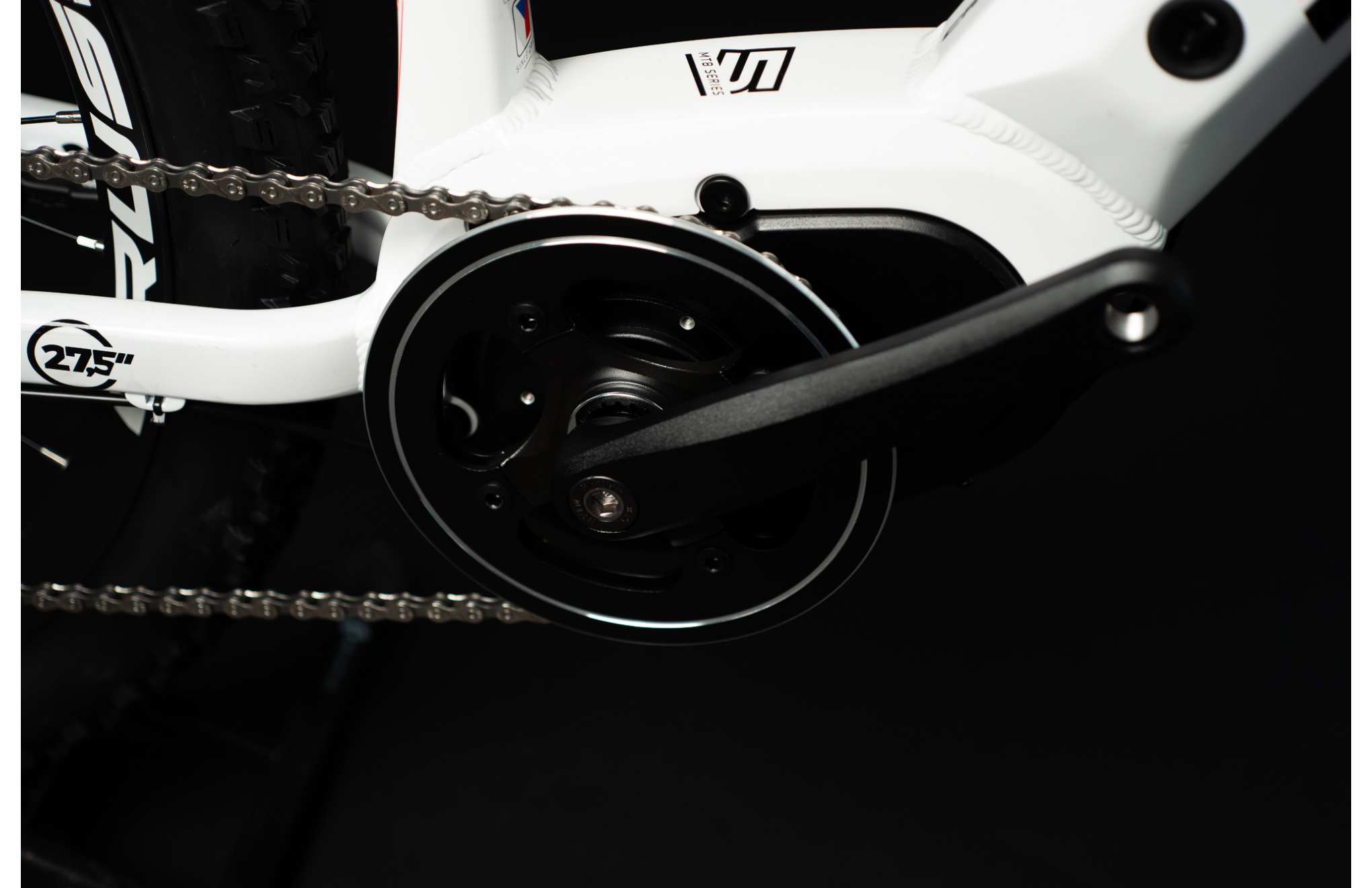

Motor BAFANG Max Drive (M400)

Motor m400 with a nominal power of 250W (max 500W) perfectly balances between torque and power consumption, which is always critical for an e-bike. It offers a really high torque of up to 80 Nm while keeping consumption low. The electric motor is equipped with a torsion sensor. The motor power is regulated by a control unit that constantly evaluates how hard the rider is pedalling. The way it works is that the more power you exert while riding (pedaling), the more the motor helps you.

Battery

Battery 468 Wh (13 Ah)

The heart of the e-bike's power supply system is a 36V / 468 Wh (13 Ah) Li-Ion battery. The battery is capable of up to 100 km range on a single charge. However, it always depends of course on the profile of the track and how the assistance is used. Of course, the battery is equipped with a BMS board (Battery Management System) to protect it from overheating, short-circuiting or overcharging. A fully discharged battery can be charged to its full capacity in 6.5 hours.

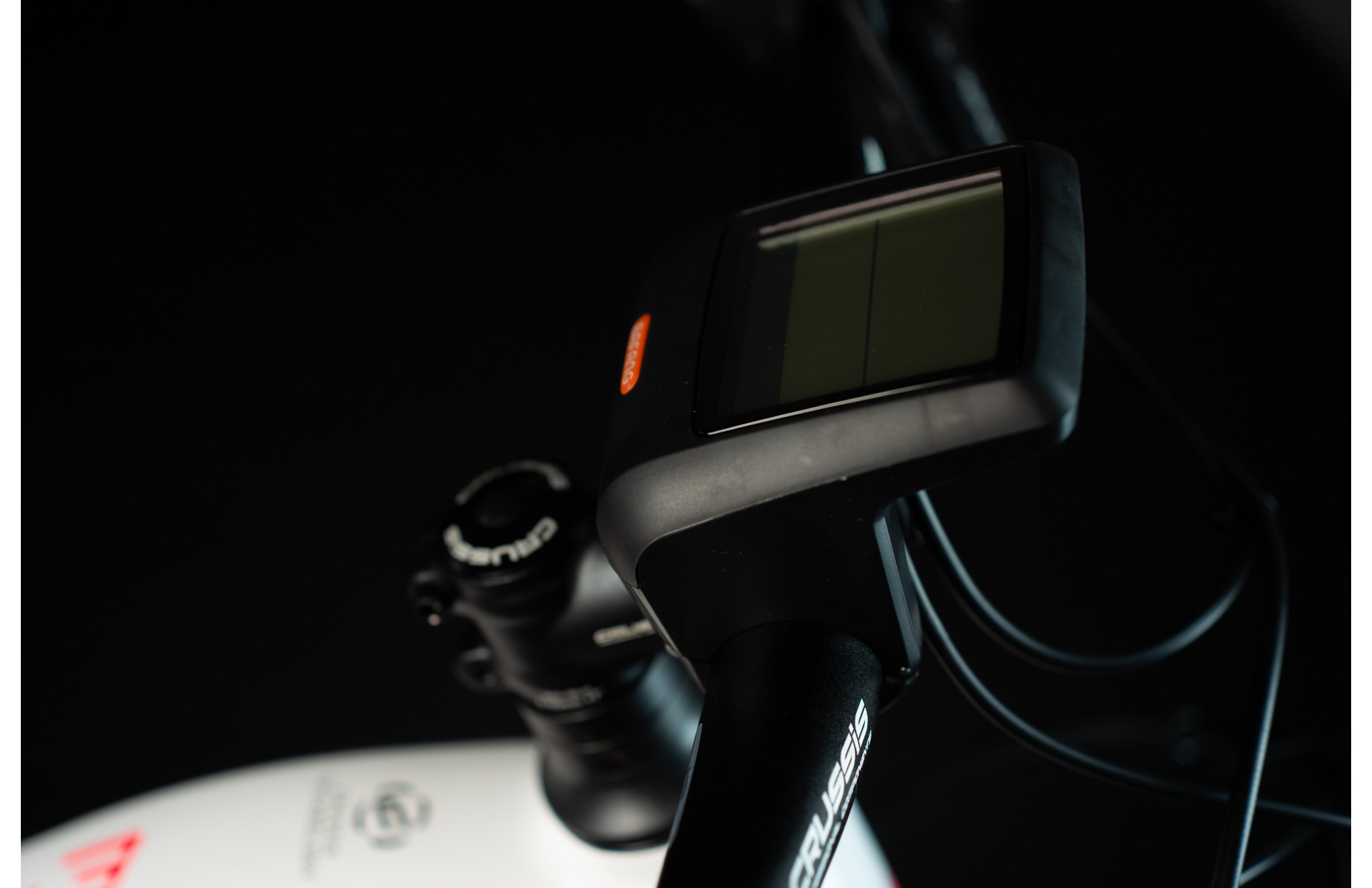

Display

BAFANG LCD display - B/W

The black and white LCD display shows not only basic information on battery status and the level of assistance currently in use, but also other data relating to the journey (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore.

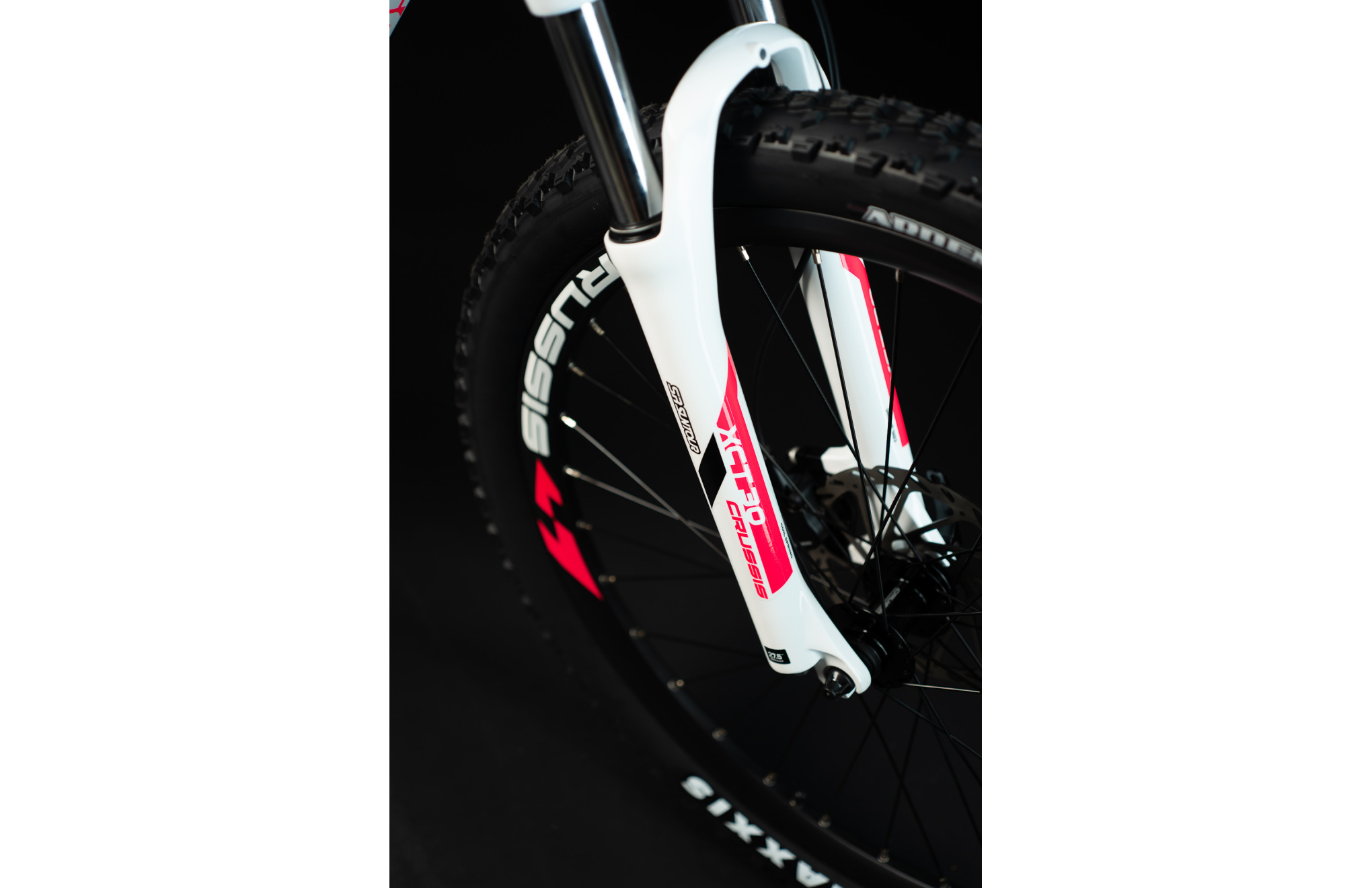

Suspension Fork

SUNTOUR XCT30 HLO DS 27,5"

The e-bike is equipped with a spring-suspended SUNTOUR XCT30 HLO DS 27,5" fork with 100 mm travel, which is perfectly adapted to the weight of the rider. Simply adjust the spring preload (turn the wheel clockwise to increase the preload and counterclockwise to decrease it) and the e-bike fully adapts to your weight and riding style. A well-adjusted fork then provides excellent shock absorption for off-road riding, while not "flexing" unnecessarily on flat surfaces. The suspension can be locked in place with a lock from the fork crown.

Technical specifications

Performance

Range

to 115 km

batteries

Li-Ion 36V / 468 Wh (13 Ah)

Motor

BAFANG MAX drive (M400), center drive, 250W (max 500W), 80 Nm

control

BAFANG LCD panel, 5 levels of assistance, black and white display

control unit

Integrated in the engine

pedal sensor

torsion

charger

2 A (included)

pedals

WELLGO, plastic with reflector

USB port

Walking assistant

yes

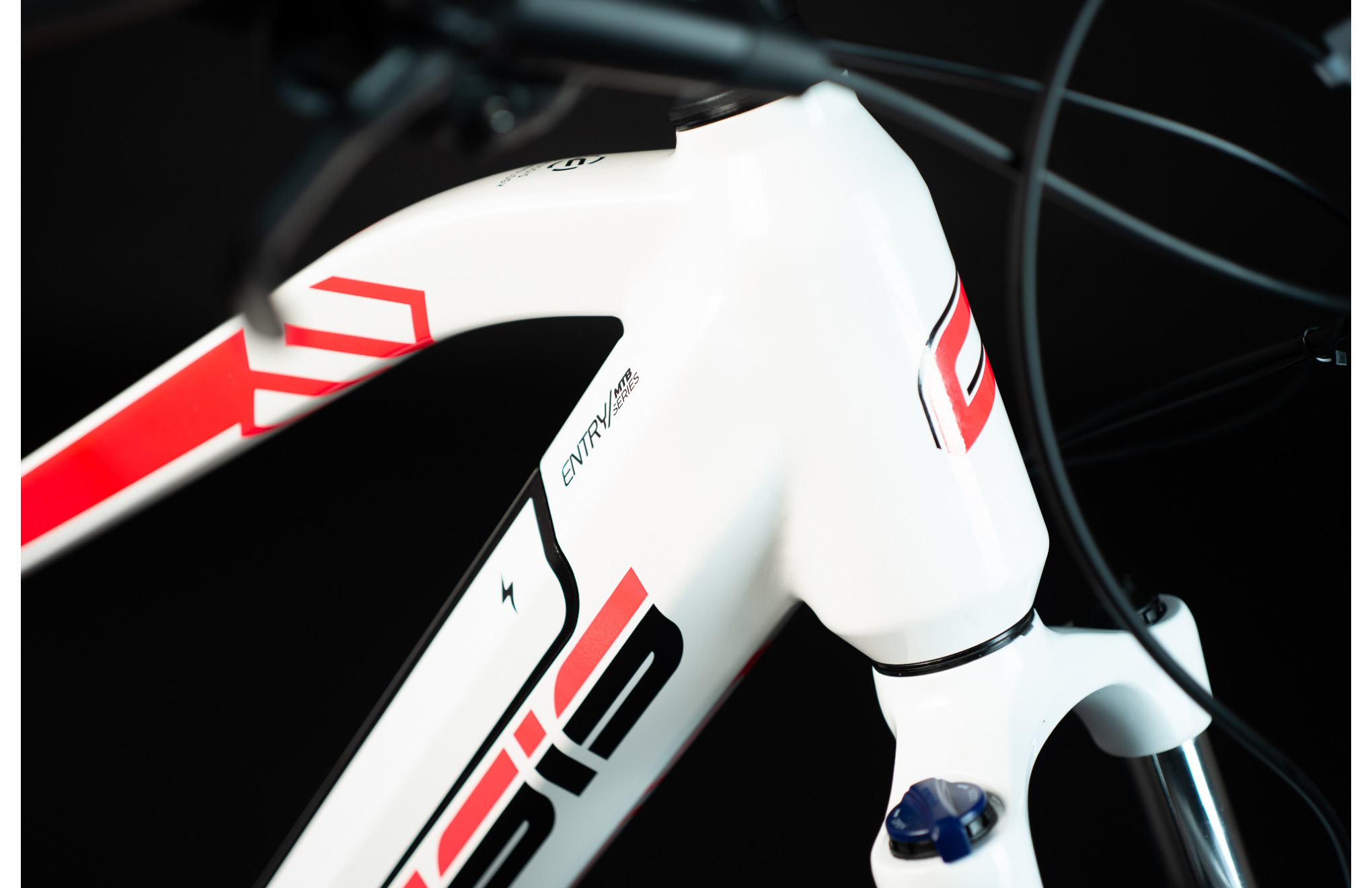

Frame

frame

Alu 6061- frame size 17"

Fork

SUNTOUR XCT30 HLO DS 27,5", 100 mm travel, lockable from fork,

Wheels

Wheel diameter

27,5"

Rims

CRUSSIS 27,5", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

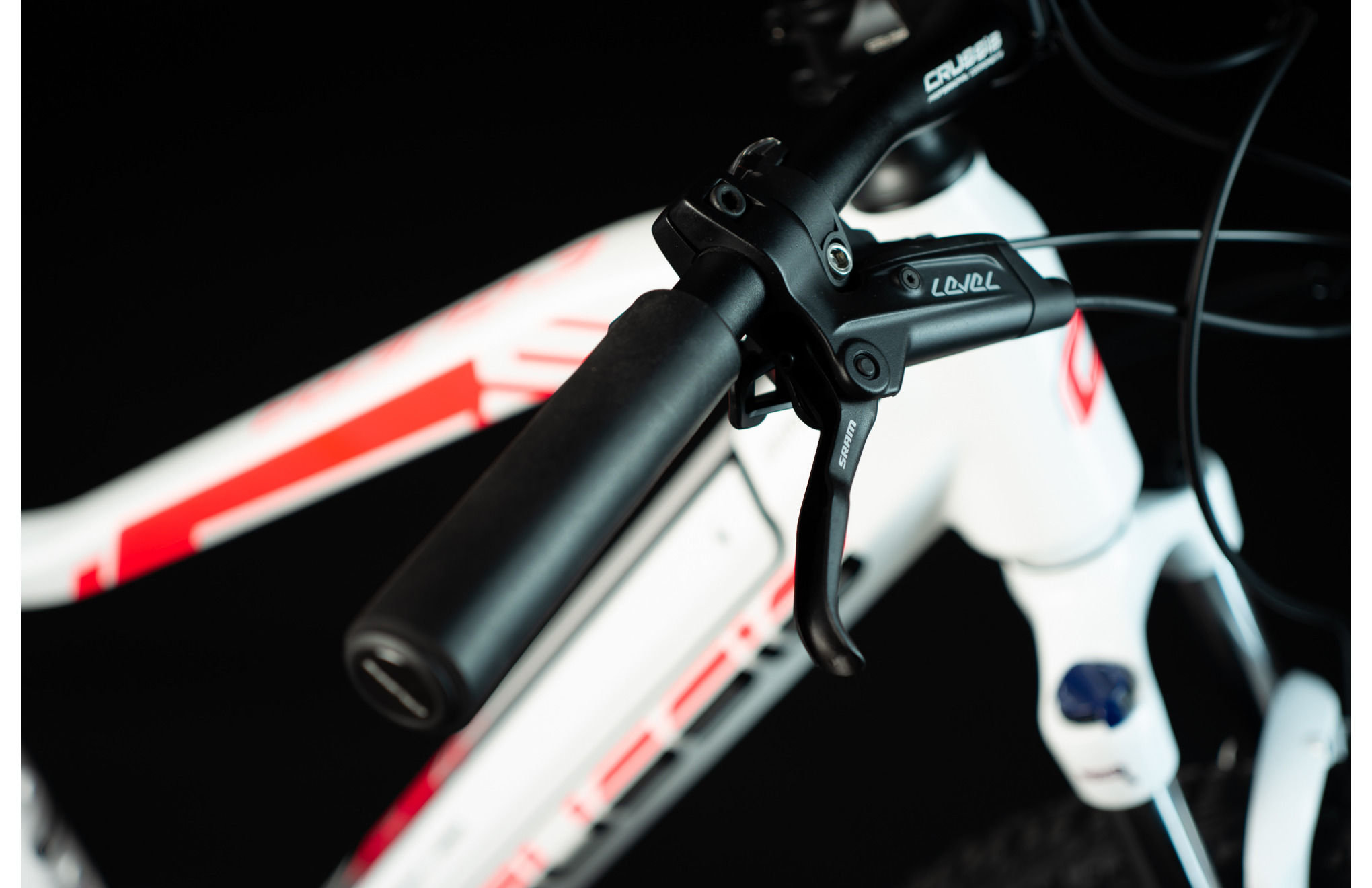

front brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 160 mm rotor

tires

MAXXIS Ardent 27,5 x 2,4

Load capacity

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components

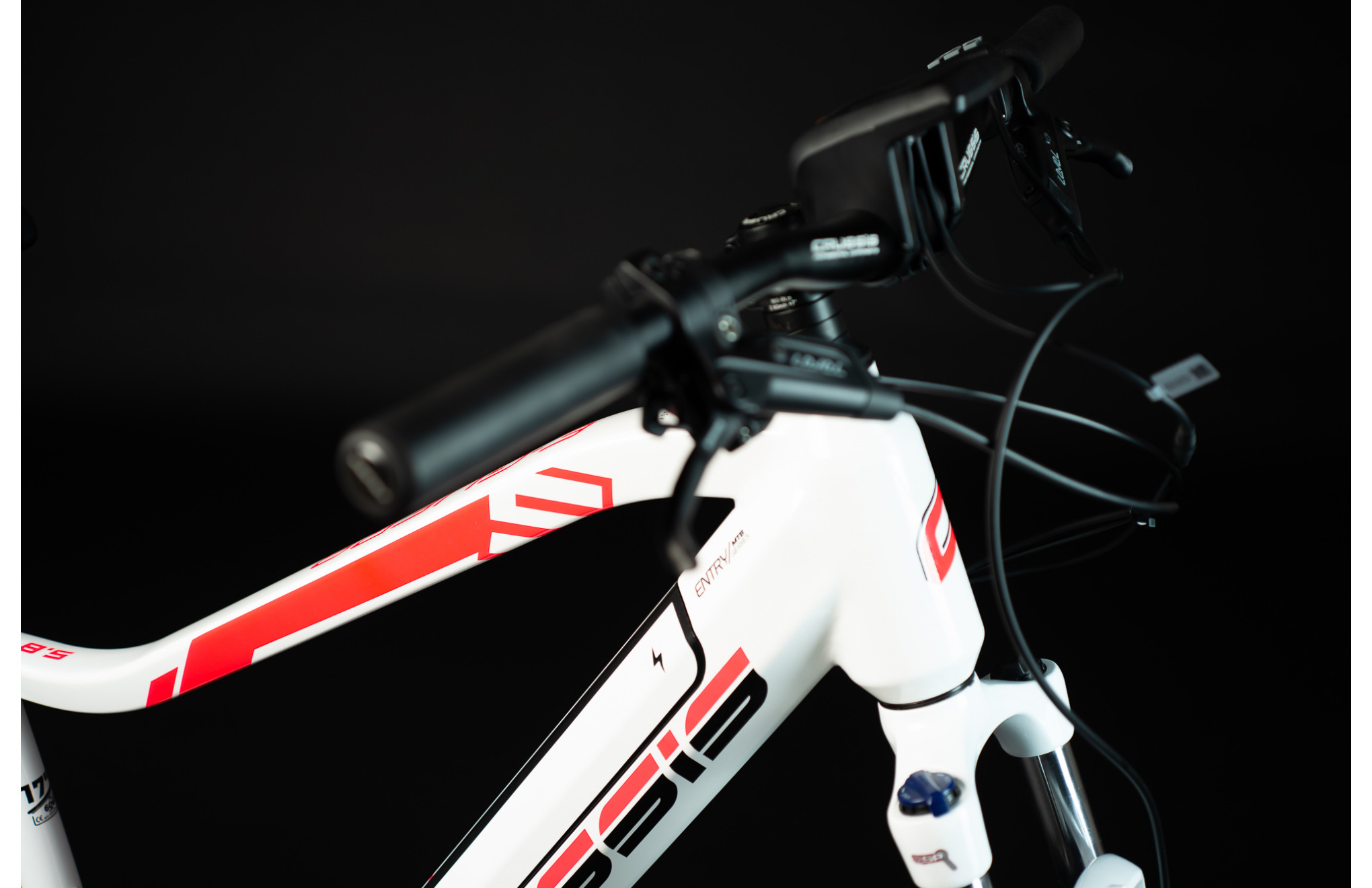

handlebars

CRUSSIS Al, 700 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

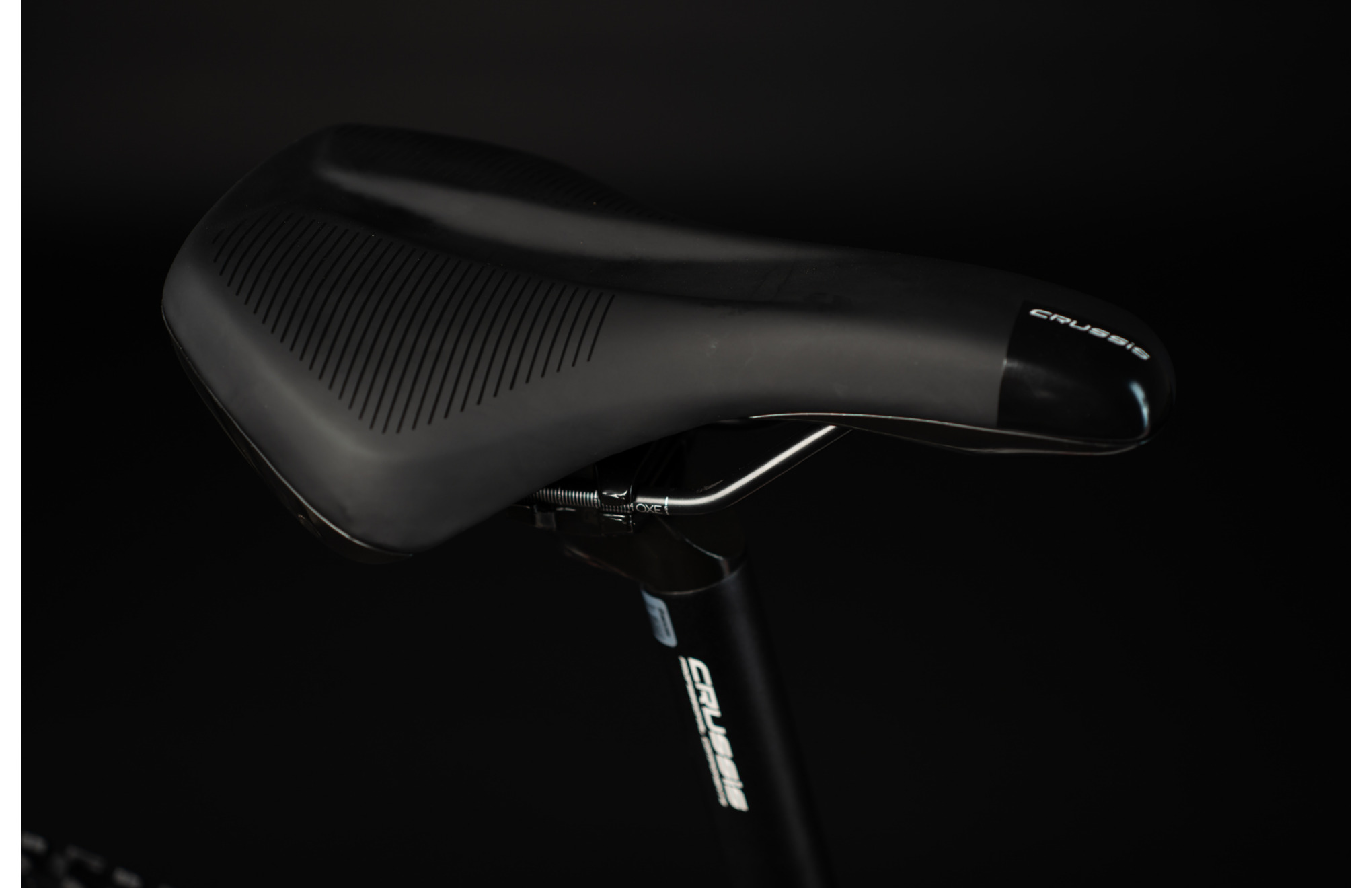

seat
