PAN-Guera 8.8-M

Name: PAN-Guera 8.8-M
Brand: Crussis
SKU: PAN-Guera 8.8-M (19)
Price: 2669 EUR
Availability: InStock

2.669 EUR

Model 2023

Available batteries

720 Wh to 170 km

Motor

Frame configurator

Select the height of the character

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21,5”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19,5”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17,5”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

Recommended frame size

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21,5”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19,5”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17,5”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

17”

19”

Catalog 2025 Add to Compare Remove from comparisons

Search for a shop

Unfortunately you can't order a bike online, but you can find the nearest shop here.

to 170 km

Range

720 Wh (20 Ah)

Battery capacity

75 Nm

Engine performance

1 x 12

Number of gears

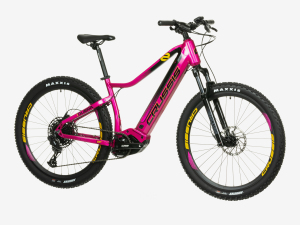

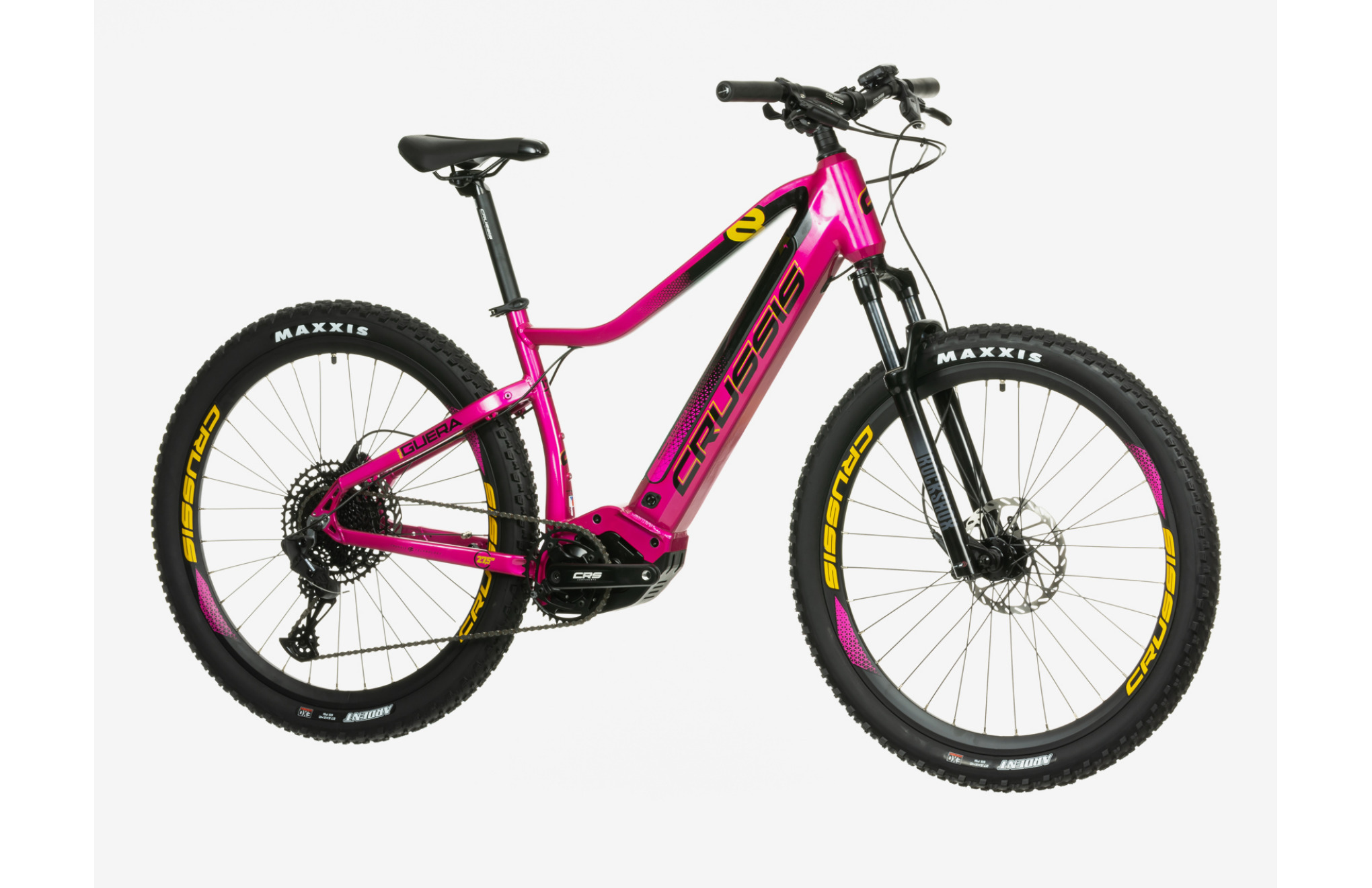

Looking for an e-bike full of cool features? Then the Crussis PAN-Guera 8.8-M with motor PANASONIC GX Power Plus may be the choice for you. Take it on your trips through the countryside or to the mountains. If you are looking for a model with better accessories (fork, motor...), check out the OLI Guera 8.8, e-Guera 9.8 nebo PAN-Guera 9.8.

PAN-Guera 8.8-M

2.669 EUR

Catalog 2025

Components

Motor

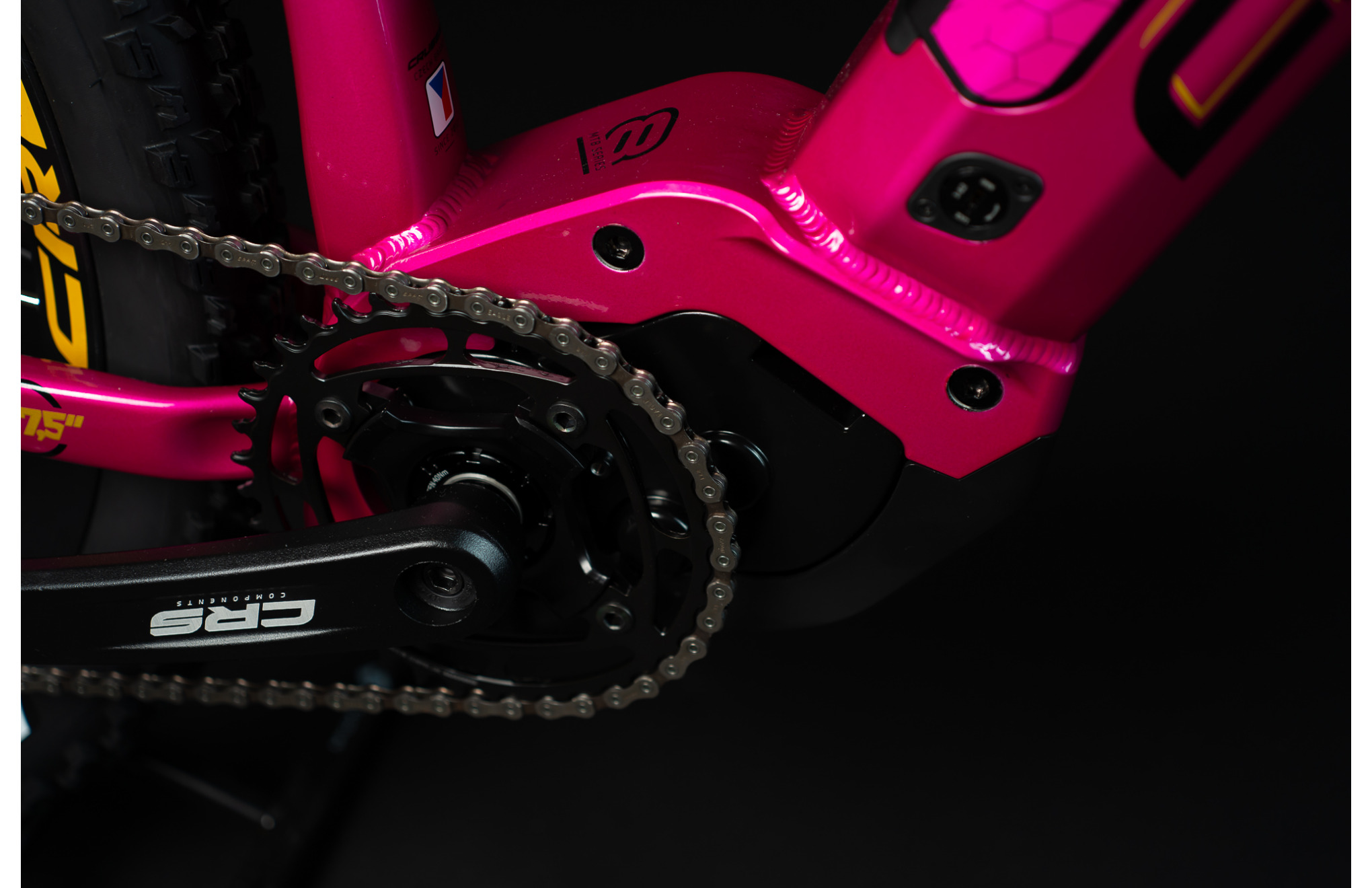

PANASONIC GX Power Plus 75 Nm

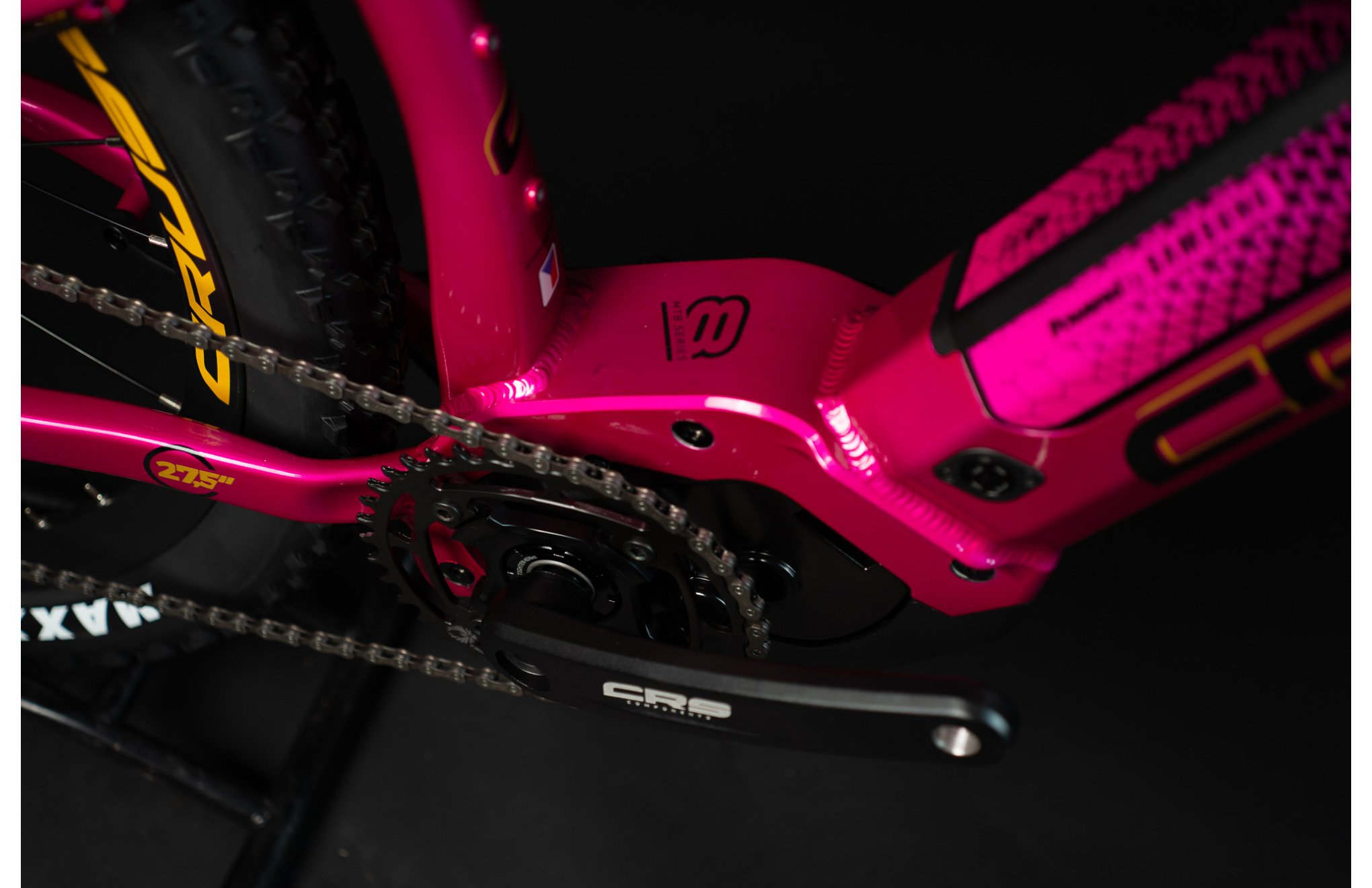

Experience a new dimension of adventure on an electric bike with the PANASONIC GX Power Plus motor! With a torque of 75 Nm and an extremely light weight of 3.2 kg, this engine is ideal for sporty riding in the mountains as well as demanding trekking trips. Whether you're weaving through forest trails or gravel roads, the PANASONIC GX Power Plus will provide you with excellent performance and support on any surface. Breathe life into your e-bike with this cutting-edge technology!

Baterie

SAMSUNG 720 Wh (20 Ah)

The heart of the e-bike's power supply system is a battery with Samsung 36V / 720 Wh (20 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

Display

PANASONIC LCD display - Colour

Control your e-bike with a color LCD display from PANASONIC, located on the left side of the handlebars. The elegantly designed display is equipped with a USB port for convenient charging of your phone. With three assistance modes – HIGH, STANDARD and ECO – you have control over the e-bike's performance. In addition, in the dynamic AUTO mode, the engine reacts to the force with which you press the pedals and automatically adapts the torque, giving you optimal assistance in the full range of engine performance. The display is weatherproof with IPX5 certification, which means high water resistance. Take control of your ride with this cutting-edge display from PANASONIC!

Gearing

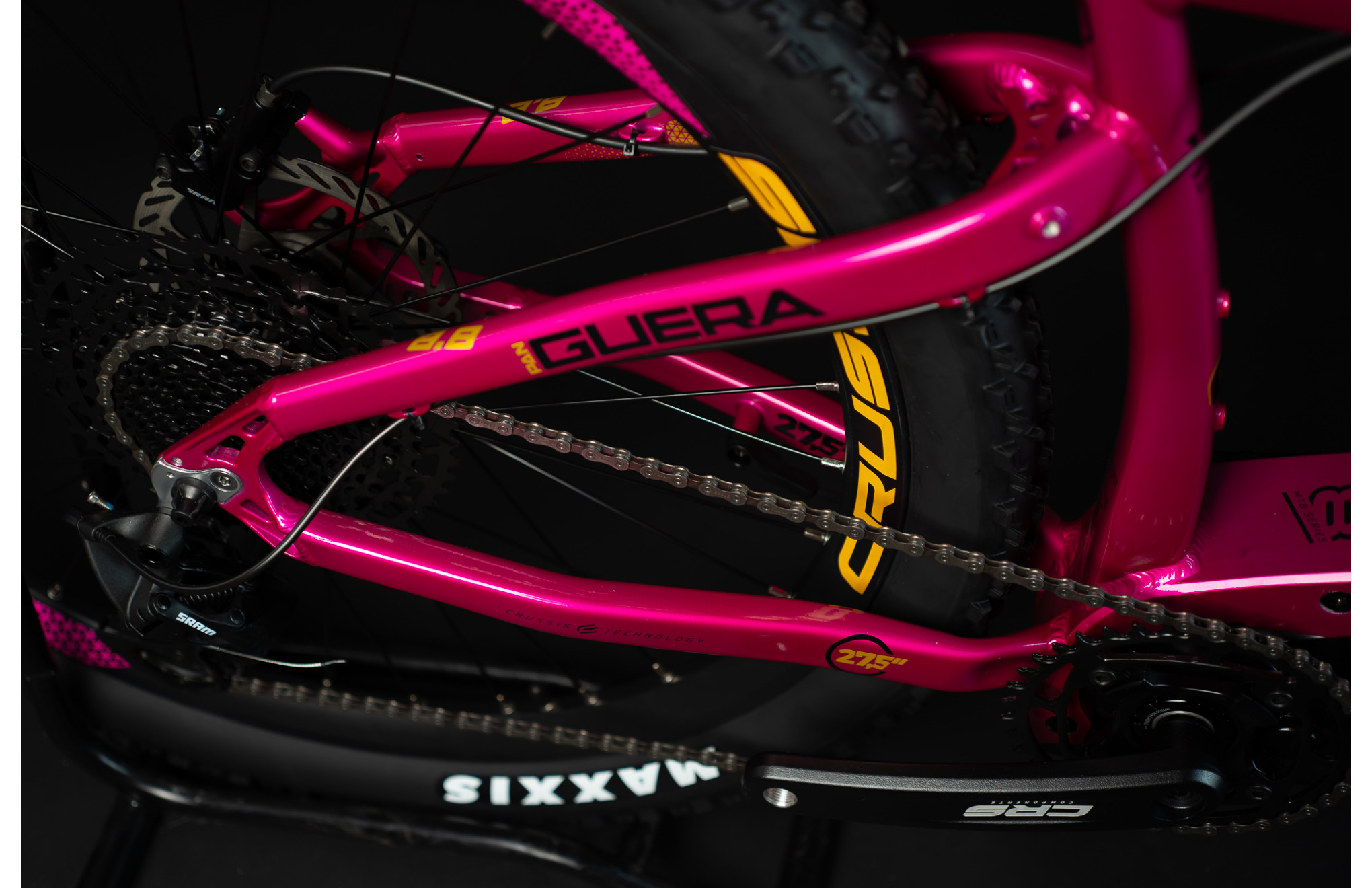

SRAM SX Eagle, 12 speed

Eagle™ technology from SRAM delivers smoother, more precise shifting with exceptional reliability. Eagle™ technology is revolutionizing MTB by offering cyclists a single-speed drivetrain that's designed to be just right - lightweight, durable, intuitive handling and a range of gears for all-terrain riding. Eagle™. The SX Eagle™ with 12 speeds is here to make it easier than ever for more cyclists to access the benefits of the Eagle™ system.

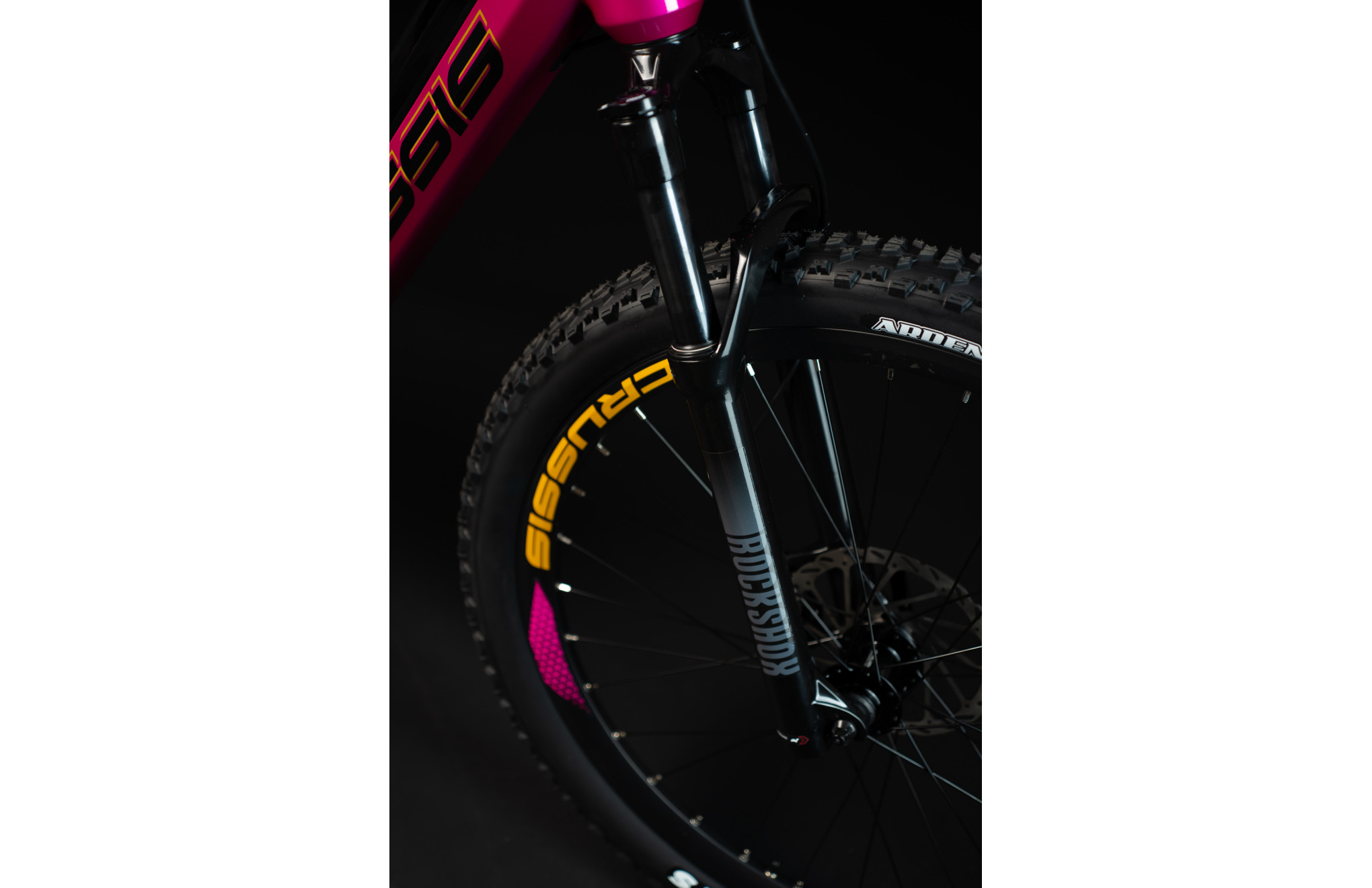

Suspension Fork

ROCKSHOX FS Judy Silver TK Solo Air 27,5"

Treat yourself to a comfortable ride with the ROCKSHOX FS Judy Silver TK Solo Air 27.5" air-suspended fork. With 100 mm of travel and simple air pressure adjustment, the fork easily adapts to your weight and riding style. It precisely absorbs off-road shocks and remains stable on the flat. For for maximum control you can simply lock the suspension directly from the fork crown. Enjoy a smooth and carefree ride on any terrain with this fork!

Technical specifications

Performance

Range

to 170 km

batteries

SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)

Motor

PANASONIC GX Power Plus, 250W (MAX 450W) 75 Nm

control

PANASONIC LCD panel, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, alu with reflector

USB port

USB Micro-B

Walking assistant

yes

Frame

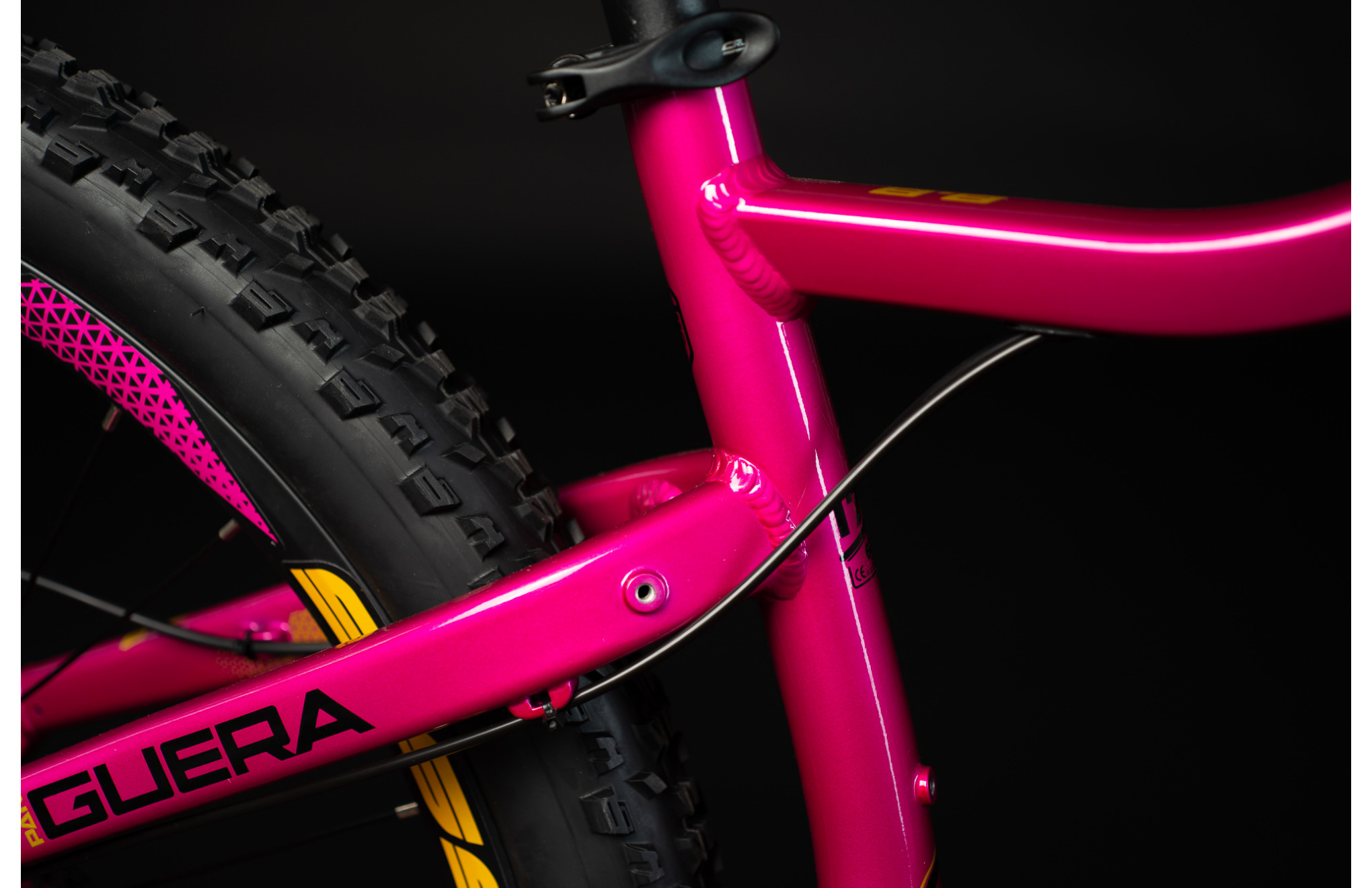

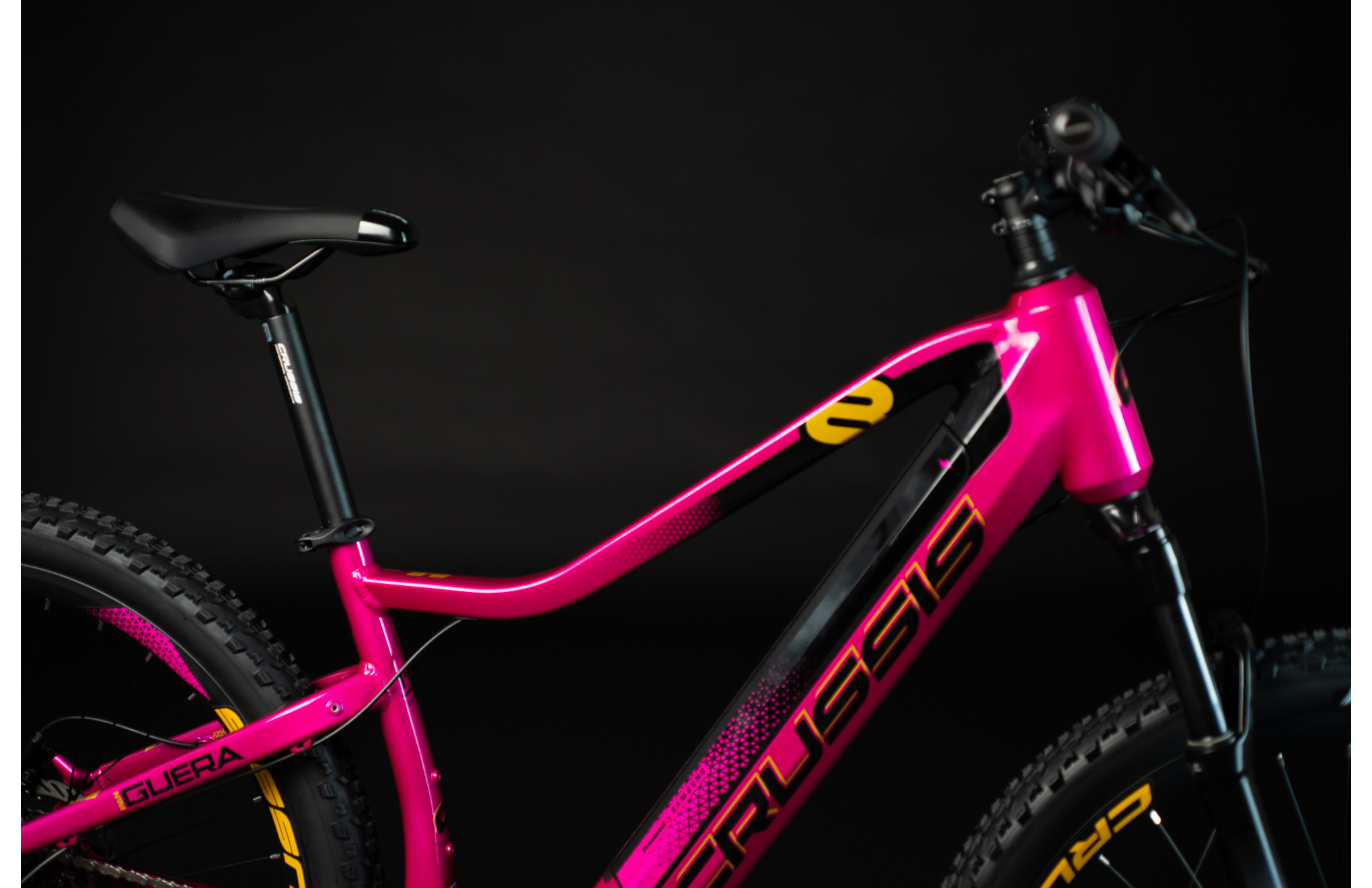

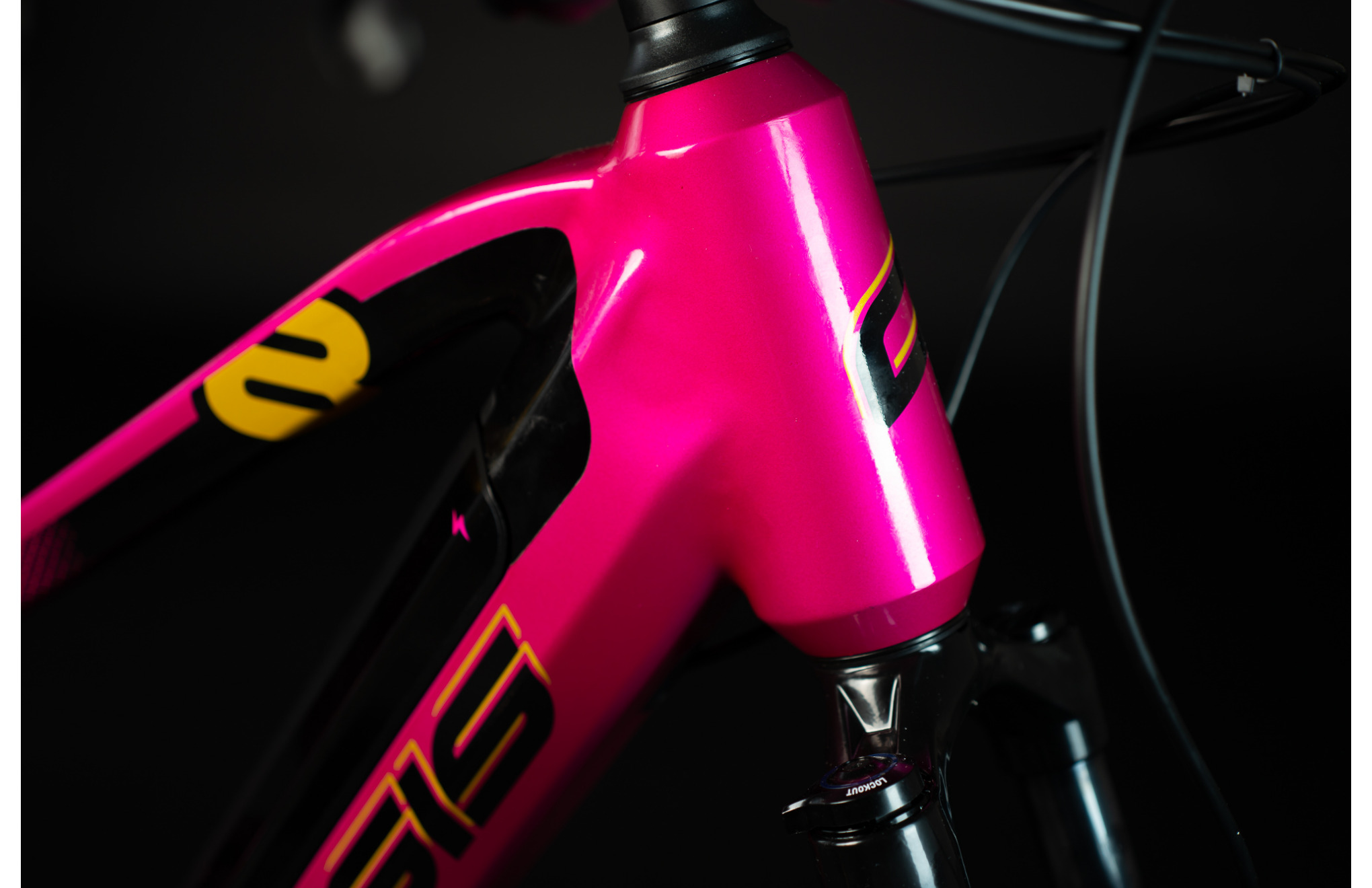

frame

Alu 6061- frame size 19"

Fork

ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm travel, fork lock

Wheels

Wheel diameter

27,5"

Rims

CRUSSIS 27,5", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

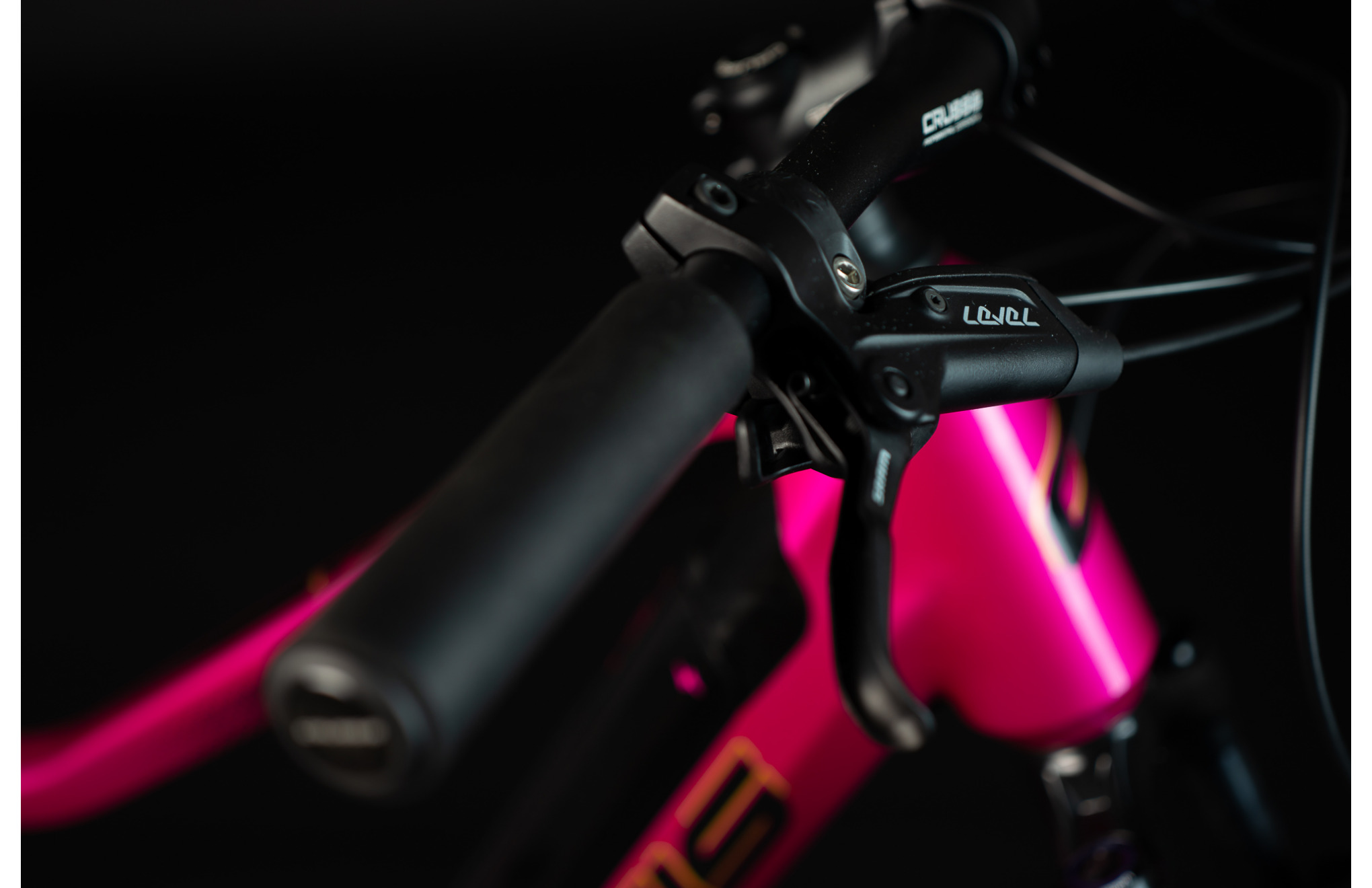

front brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor

tires

MAXXIS Ardent 27,5 x 2,40

Load capacity

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components

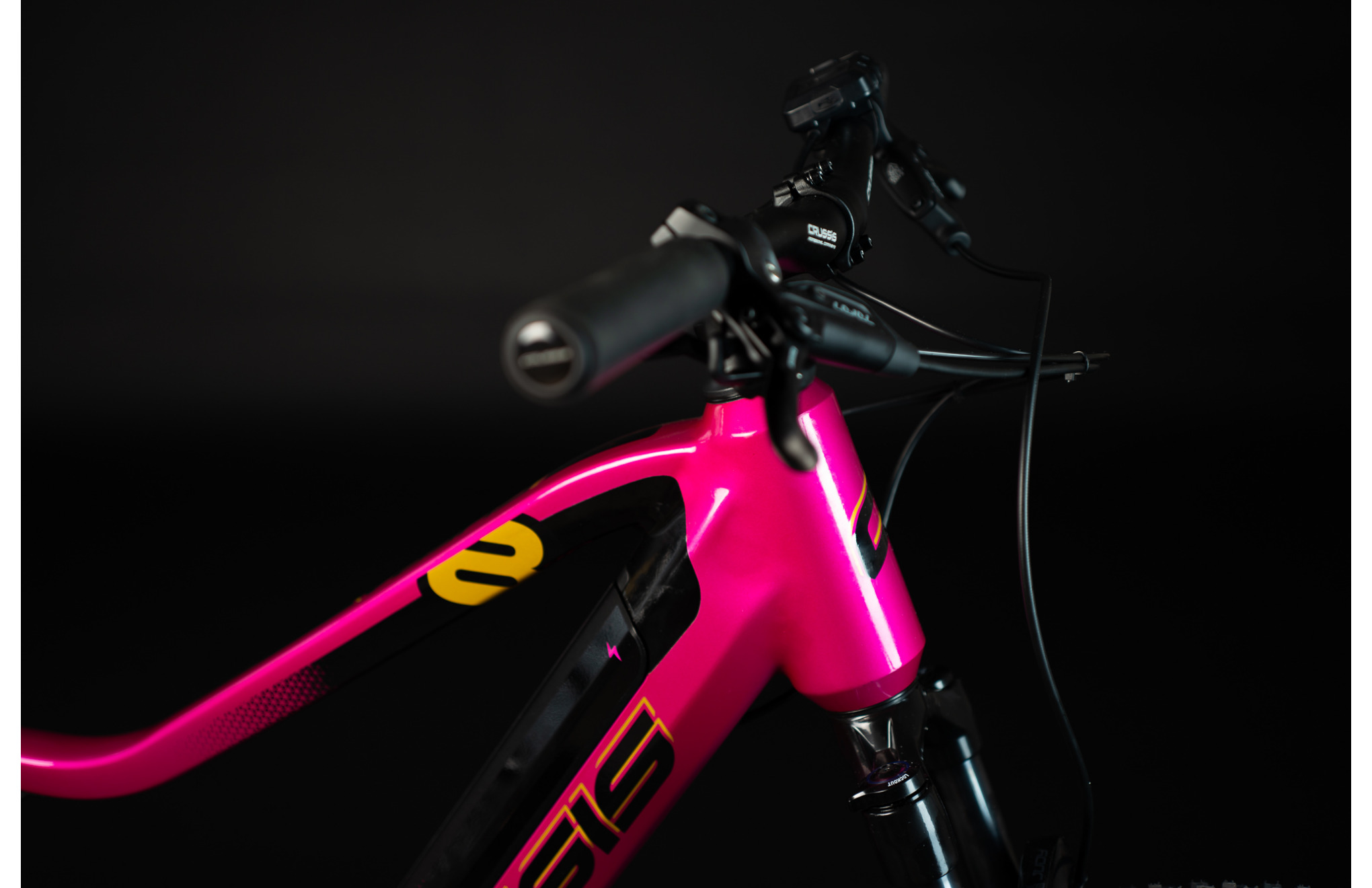

handlebars

CRUSSIS Al, 700 mm

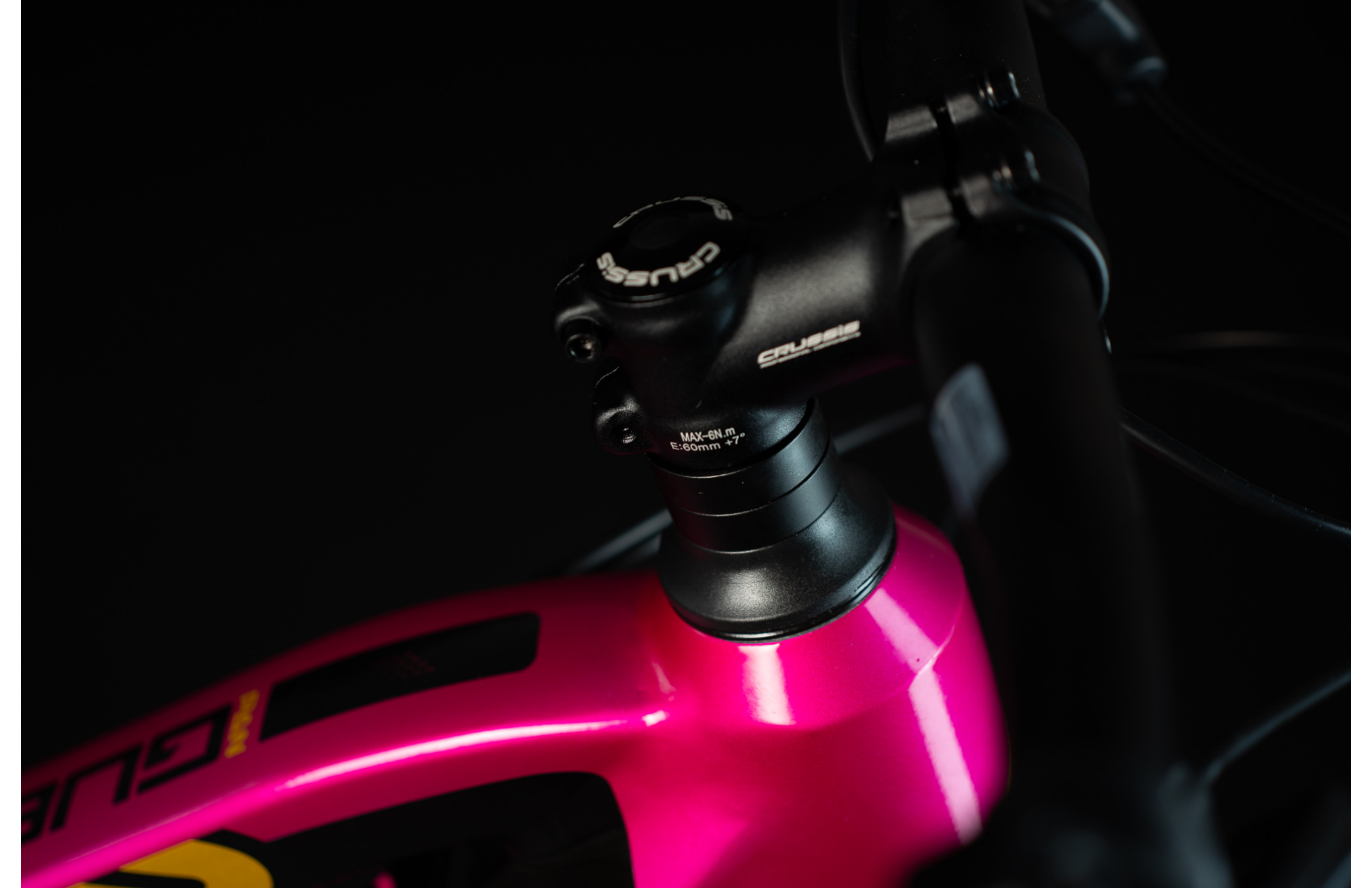

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

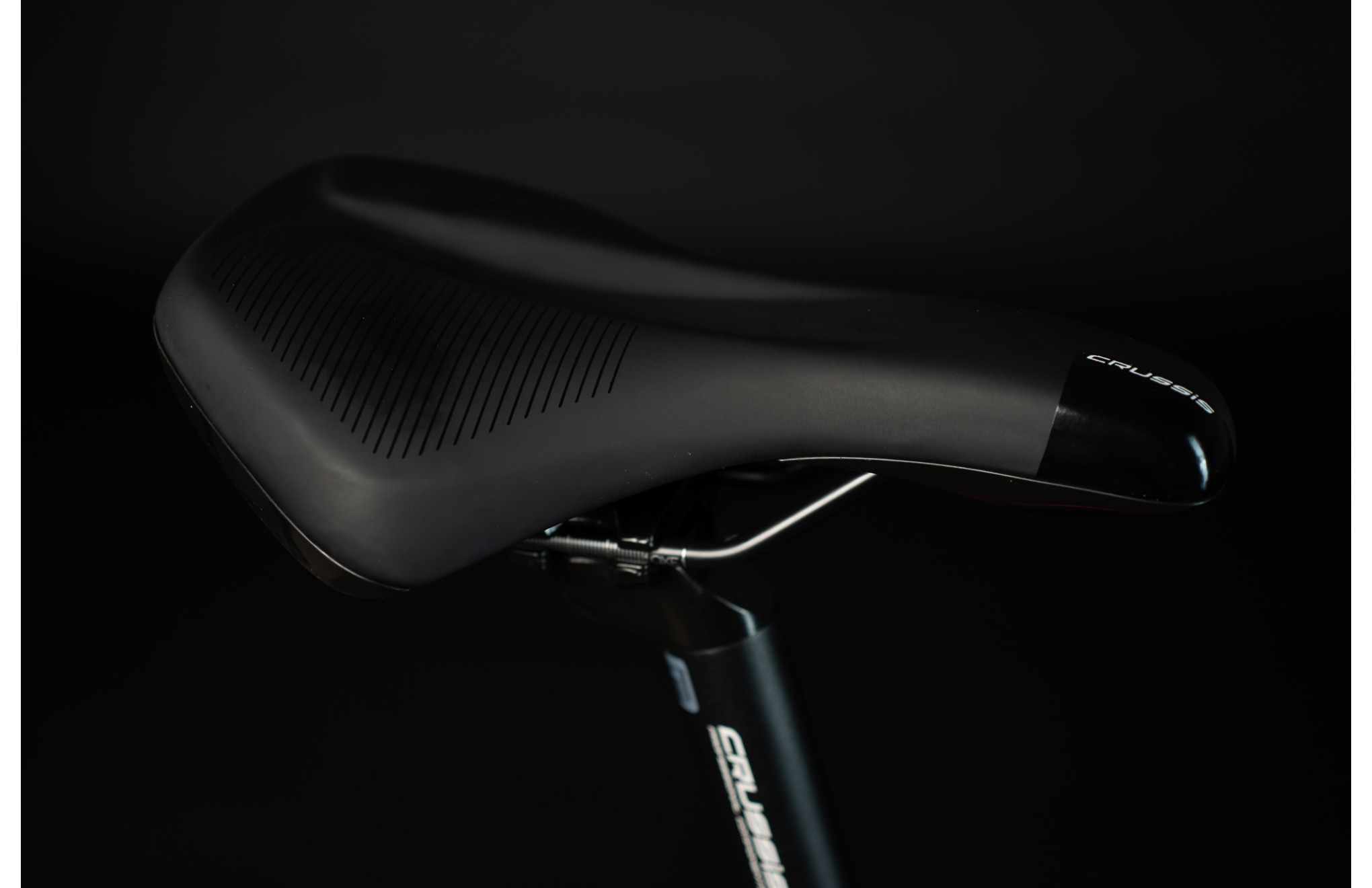

seat
